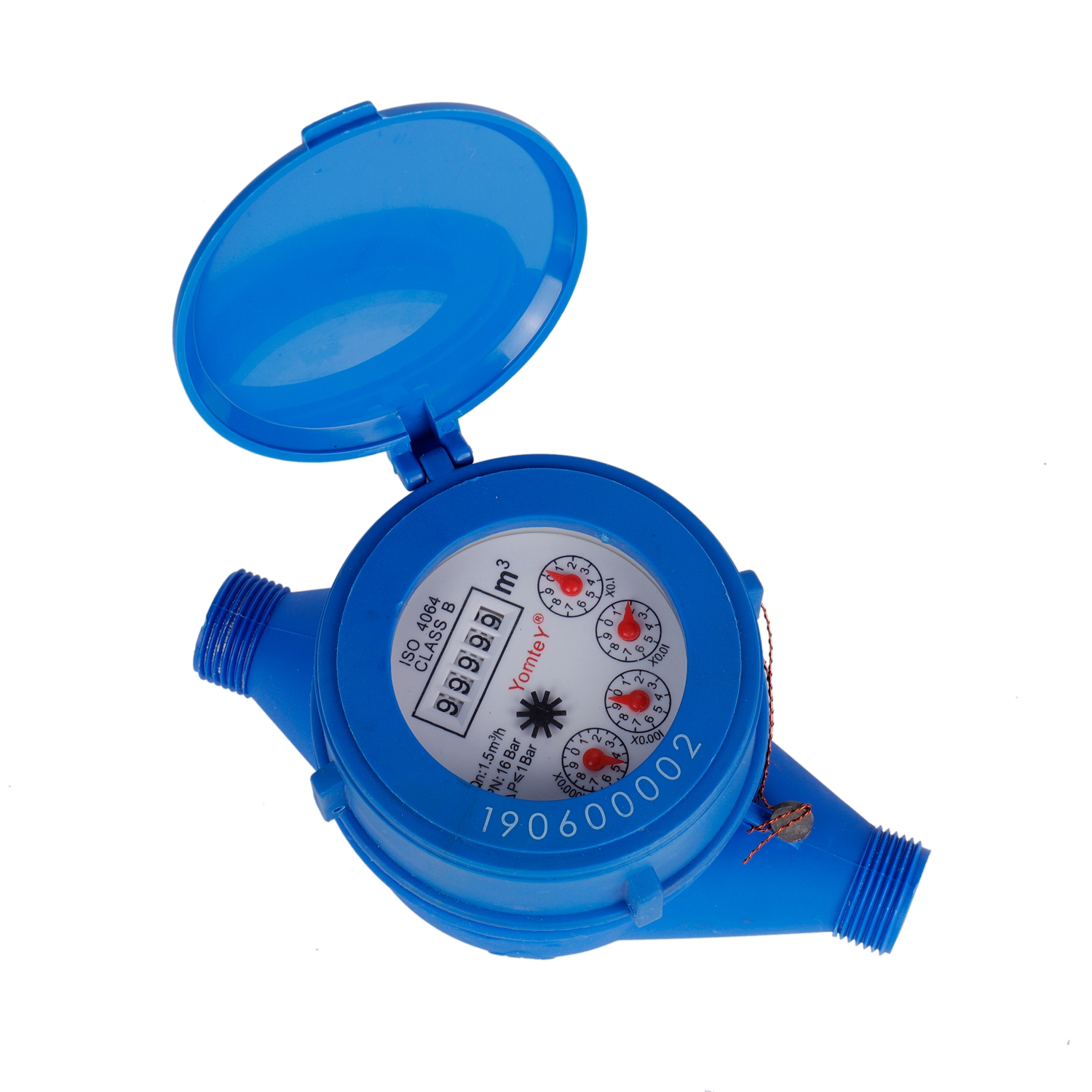

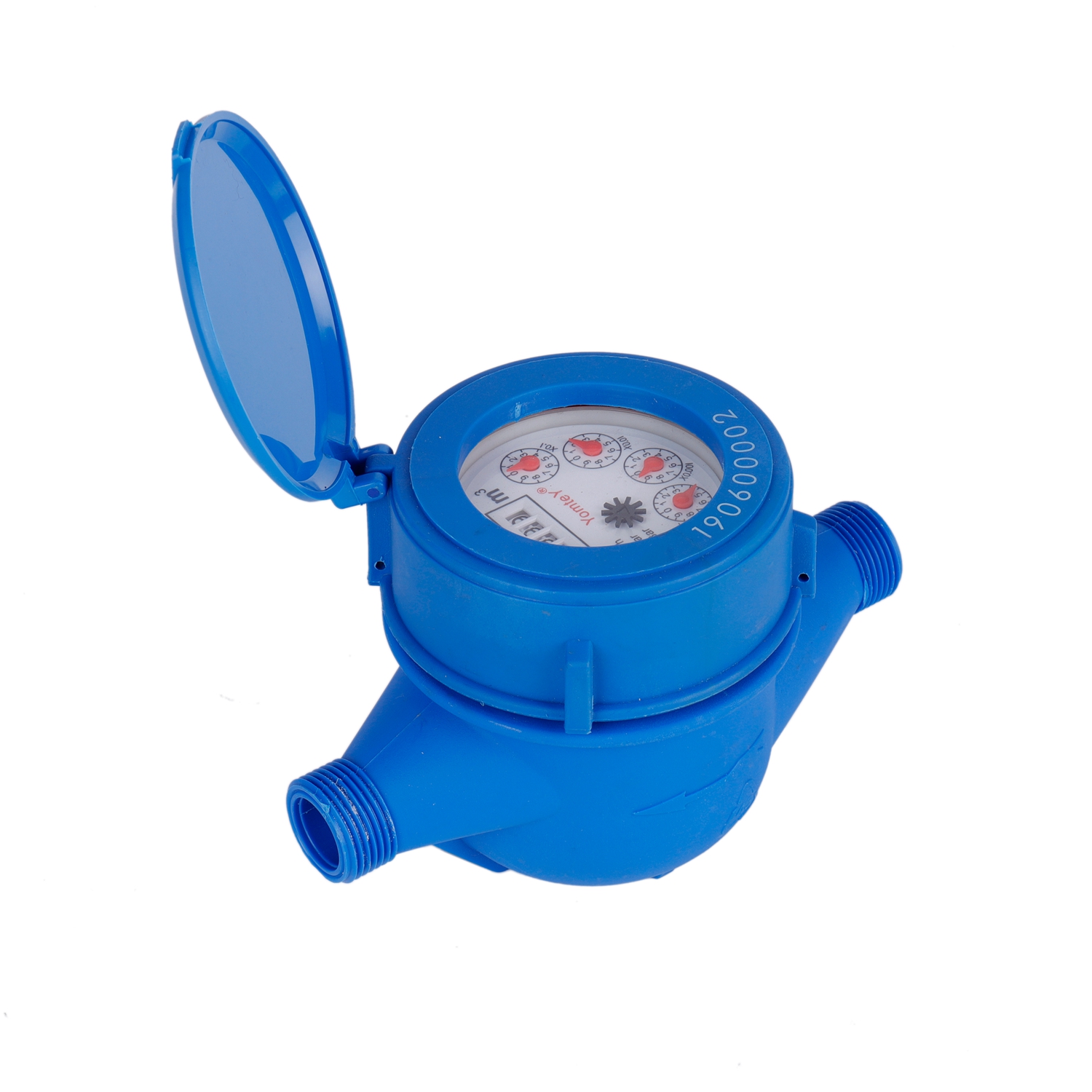

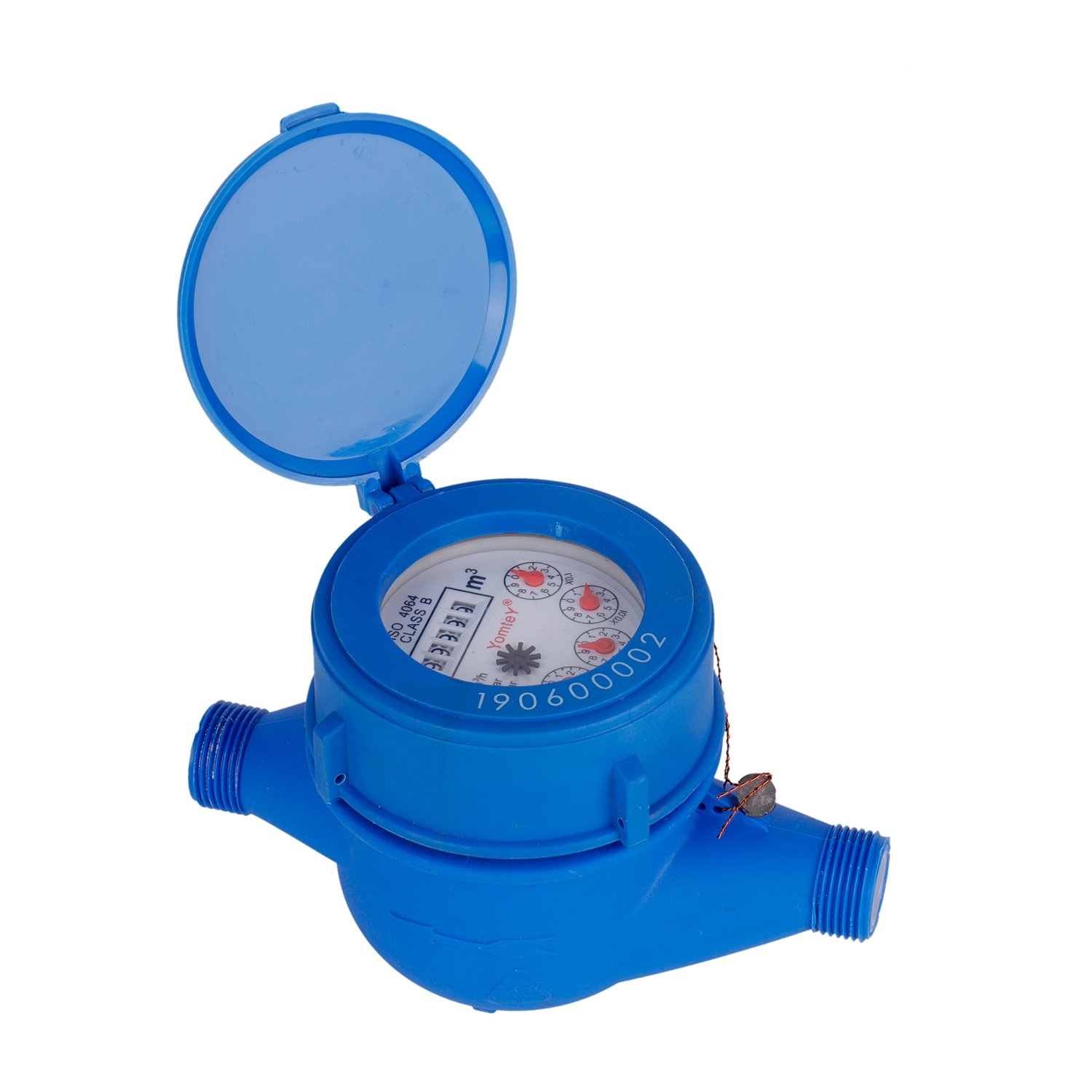

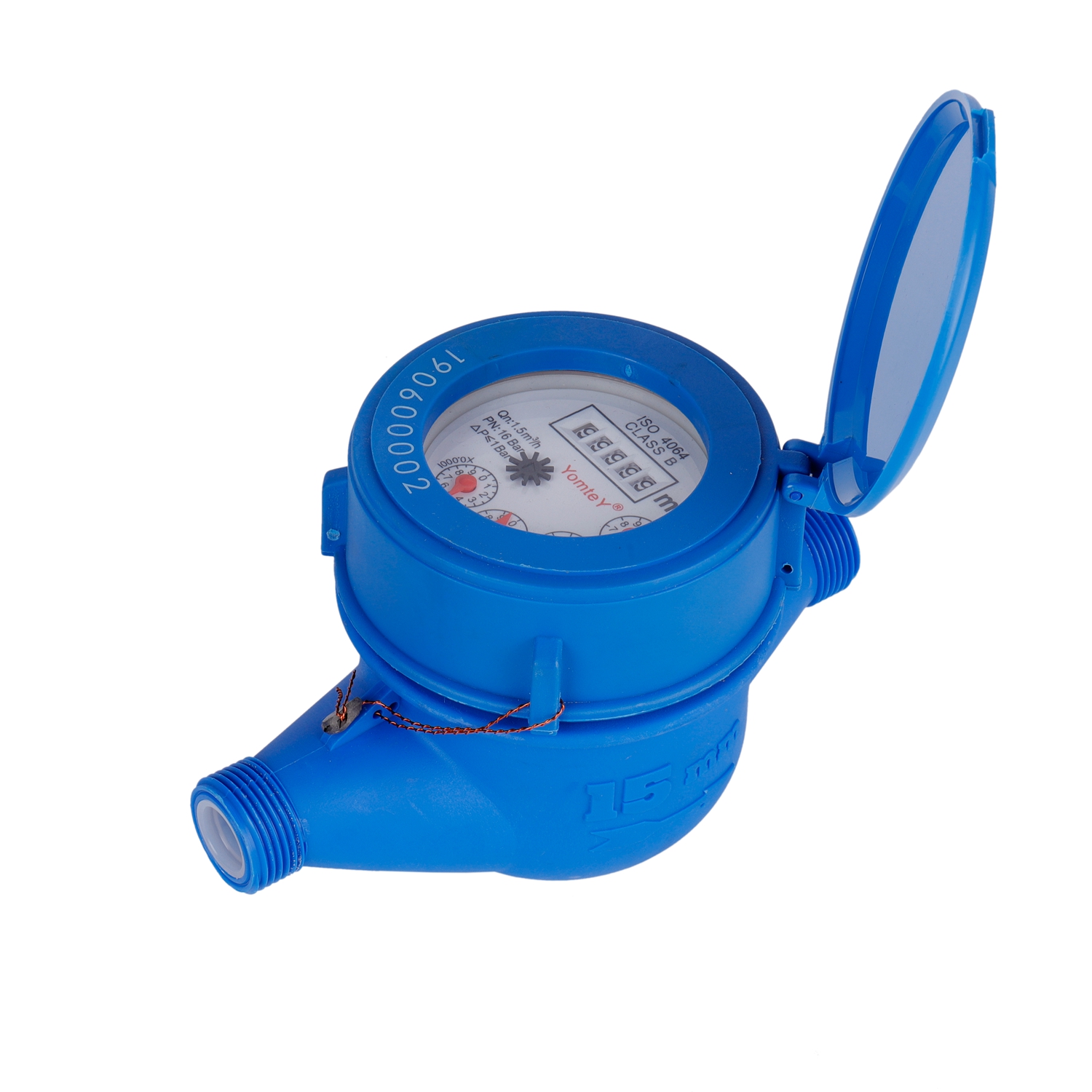

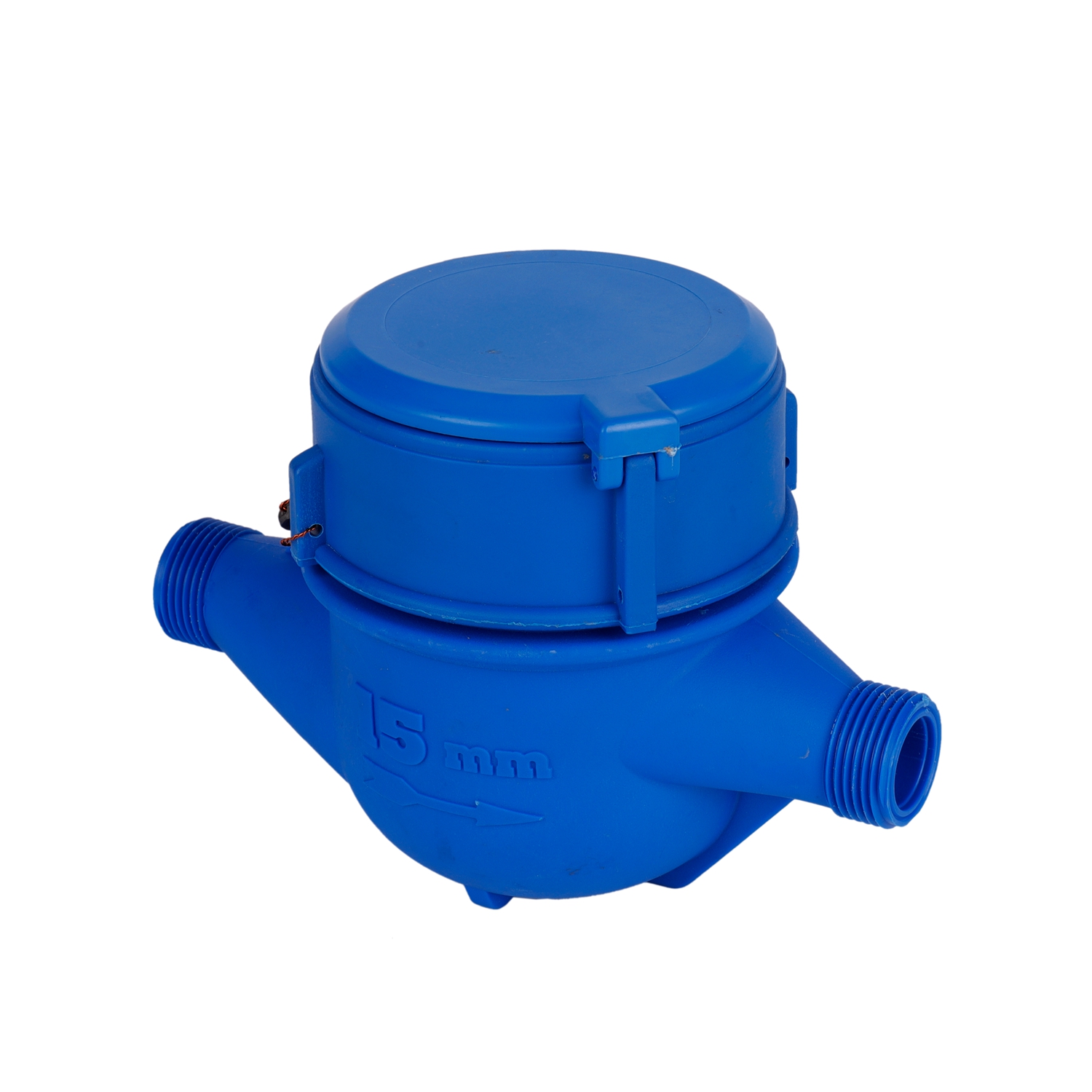

NYLON MULTI-JET ROTARY VANE WHEEL WET-DIAL TYPE COLD WATER METER LXSG-15P ~LXSG-50P

PRODUCT FEATURE:

Multi-jet, Rotary vane wheel type
Dry-dial, Magnetic drive, Resistance to exterior magnetic interference .
Selected high quality materials for steady, reliable characteristic& good looking.
Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service.
Measuring accuracy conform to ISO4064 Class B Standard.
Universal use .Easy for interchange and maintenance.
Blue, grey, black of nylon body color for option.

APPLICATION:

This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit passing through the pipeline.
Compliance with Standard: Technical data conforms to ISO4064 Class B
Standard for Horizontal installation

MAXIMUM PERMISSIBLE ERROR:

In the lower zone from Qmin inclusive up to but excluding Qt is±5%
In the upper zone from Qt inclusive up to and including Qs is±2%
(Hot water meter±3%)

WORKING CONDITION:

Water temperature:0℃≤t≤40℃(For cold water meter )
Water pressure: 1. ≤1.0<MPa
2. ≤1.6<MPa

INSTALLATION REQUIREMENTS:

Meter should be installed in horizontal position with register face upwards.
Pipeline must be flushed before installation .
The meter should be constantly full of water during operation.
