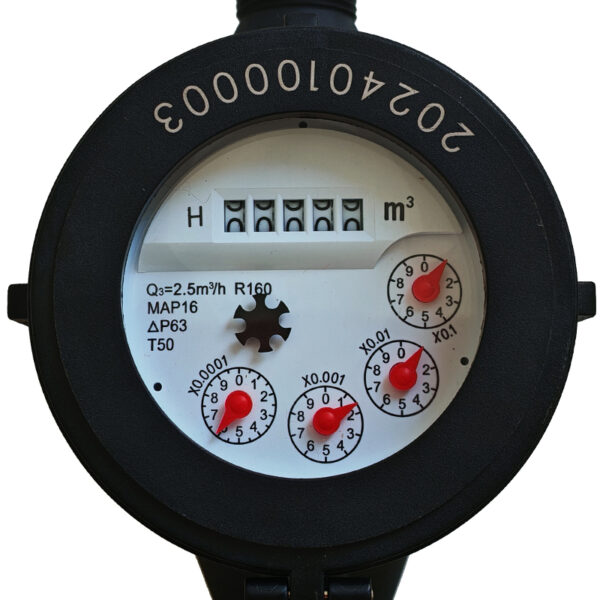

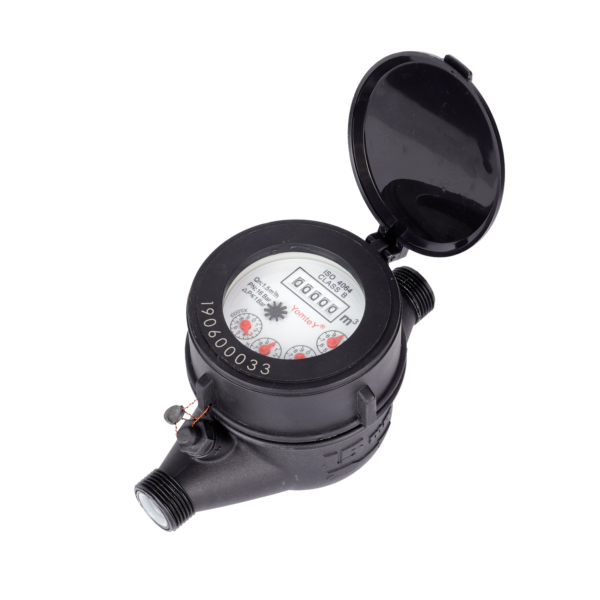

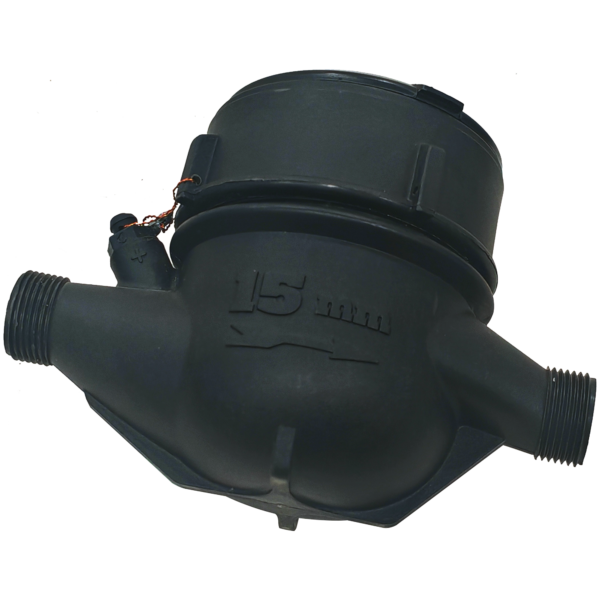

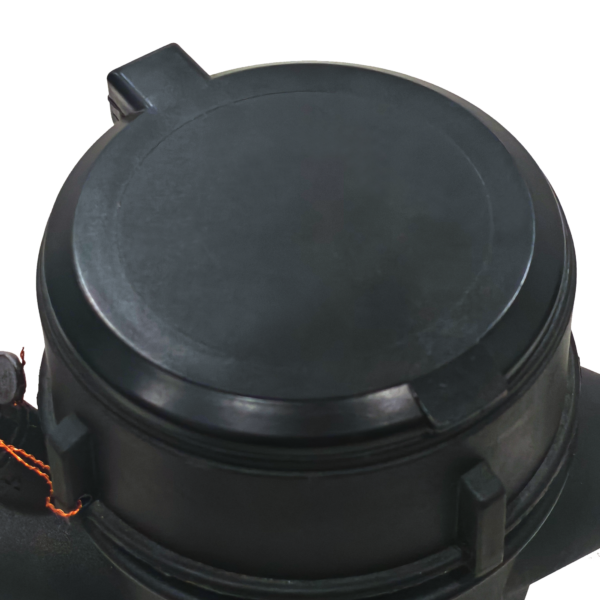

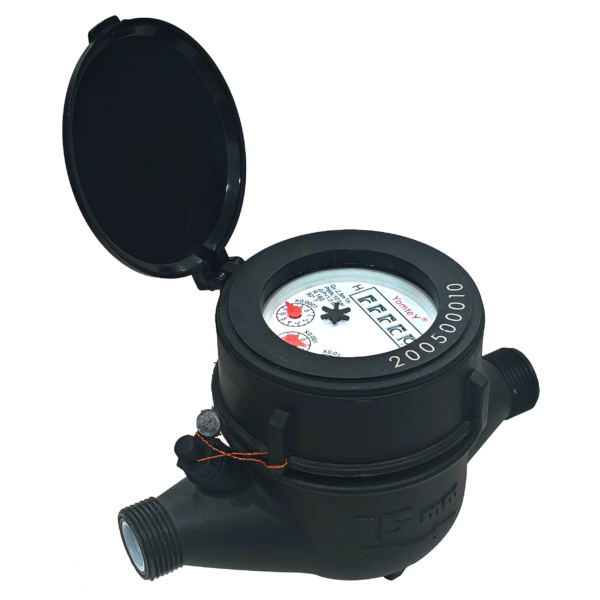

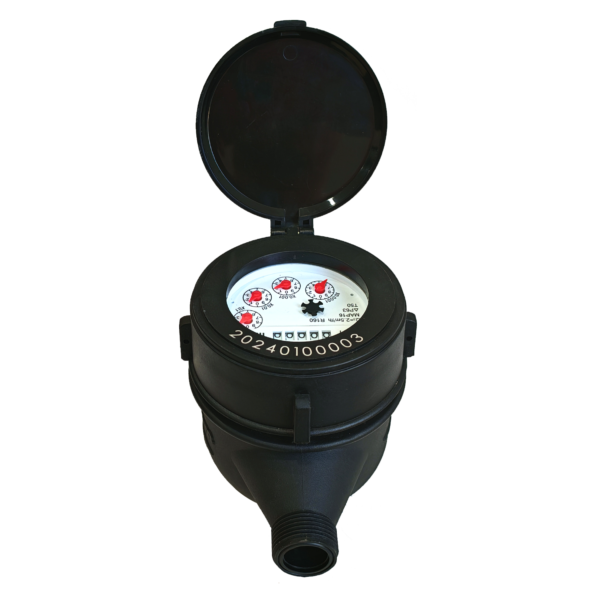

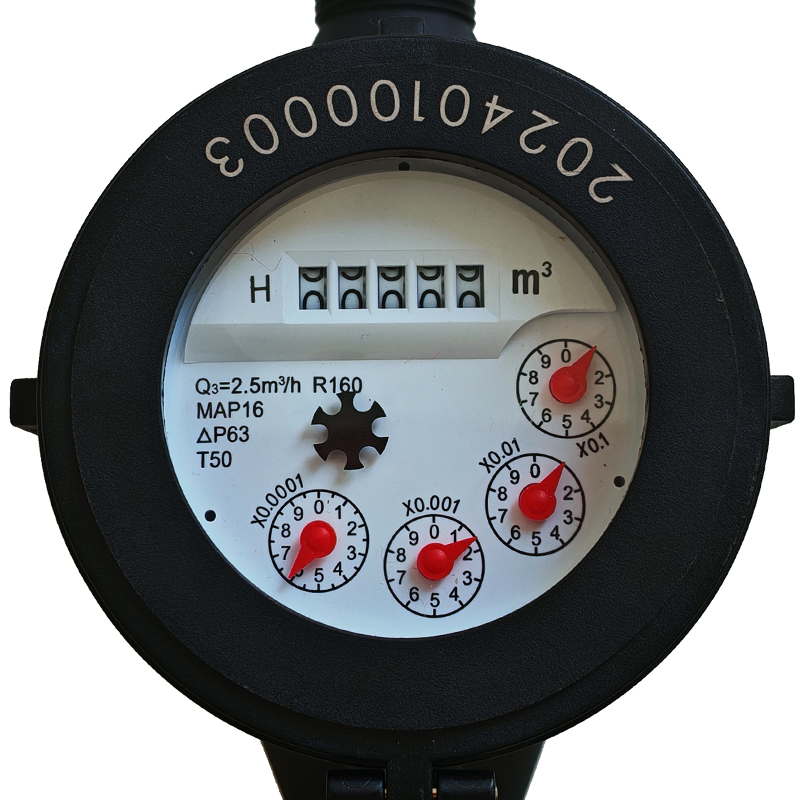

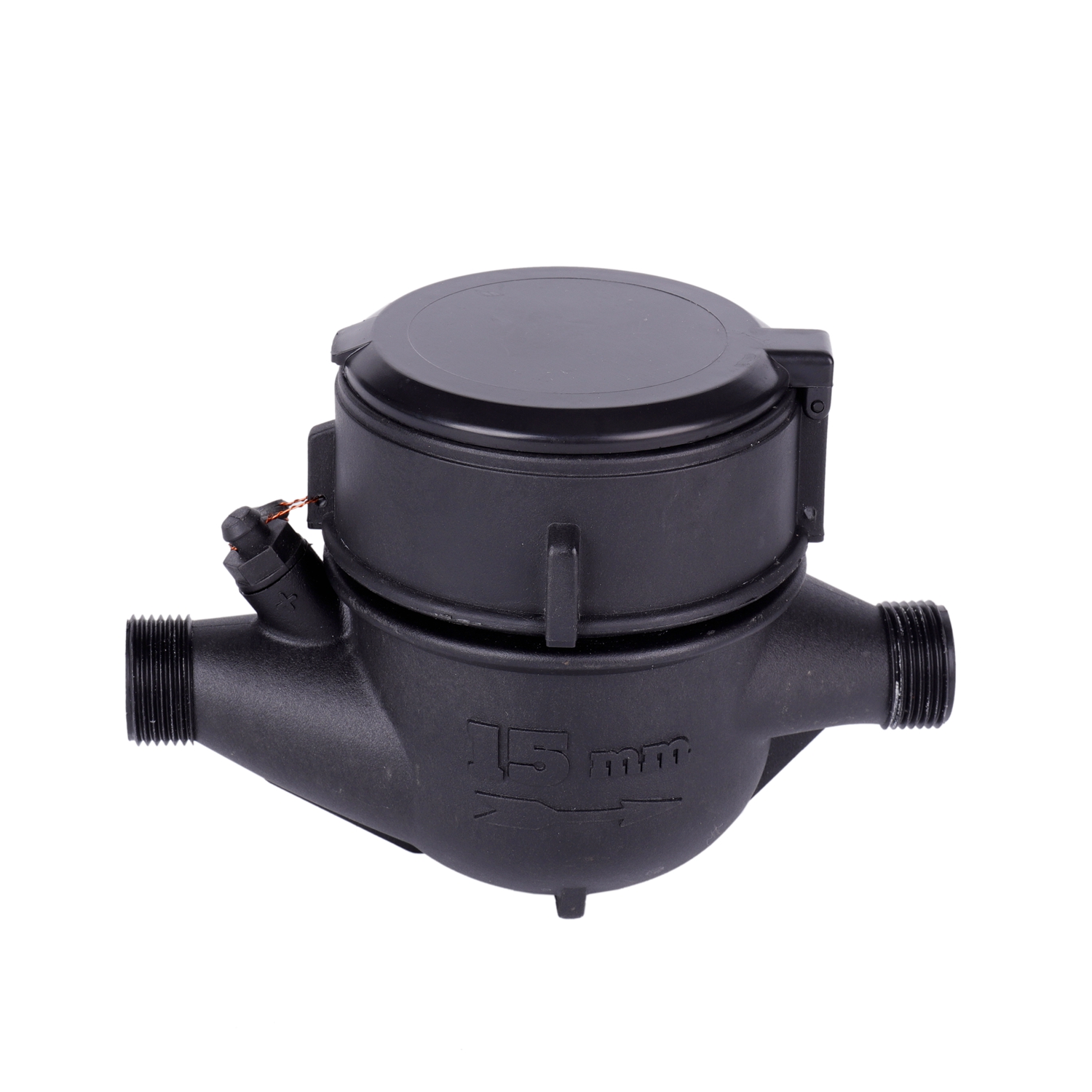

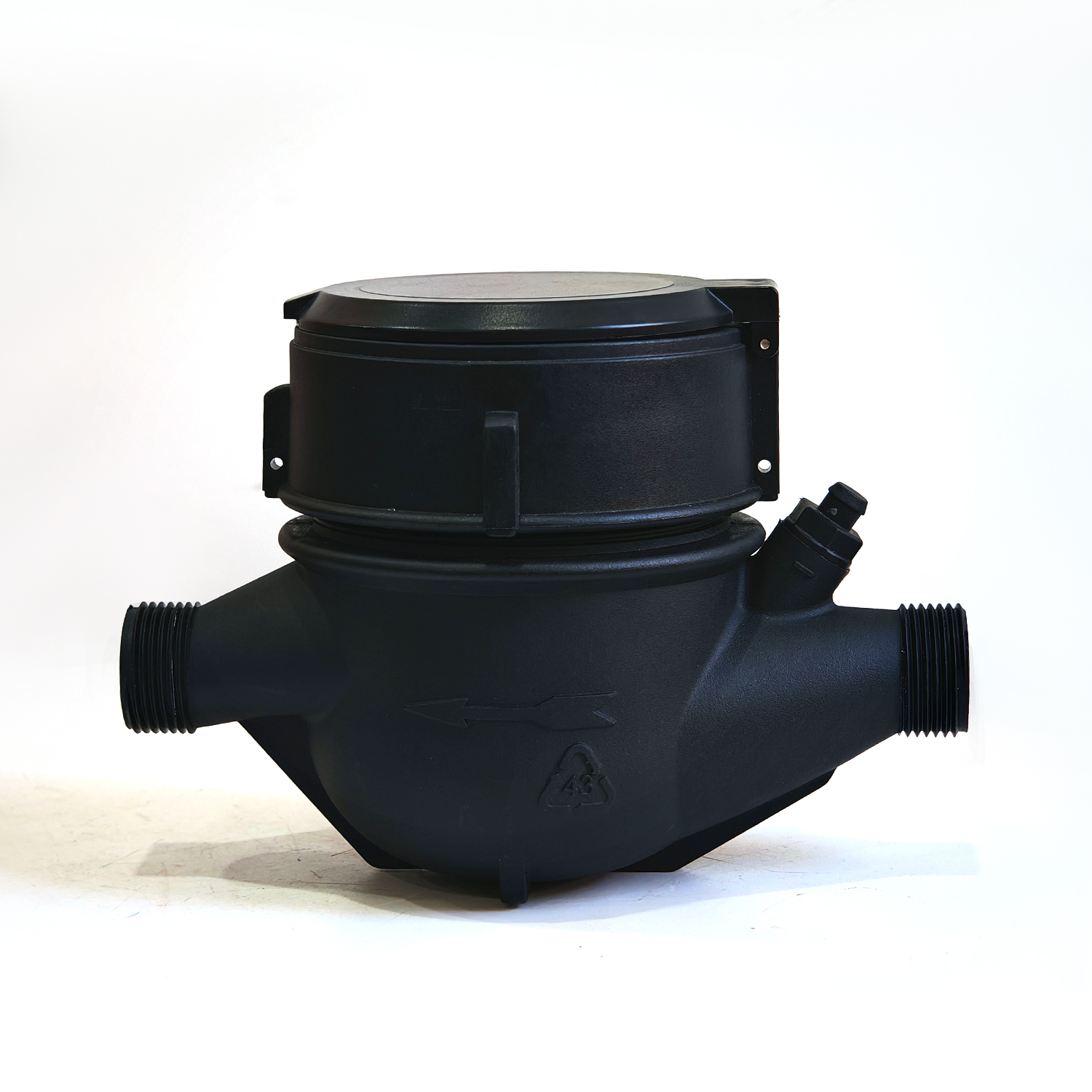

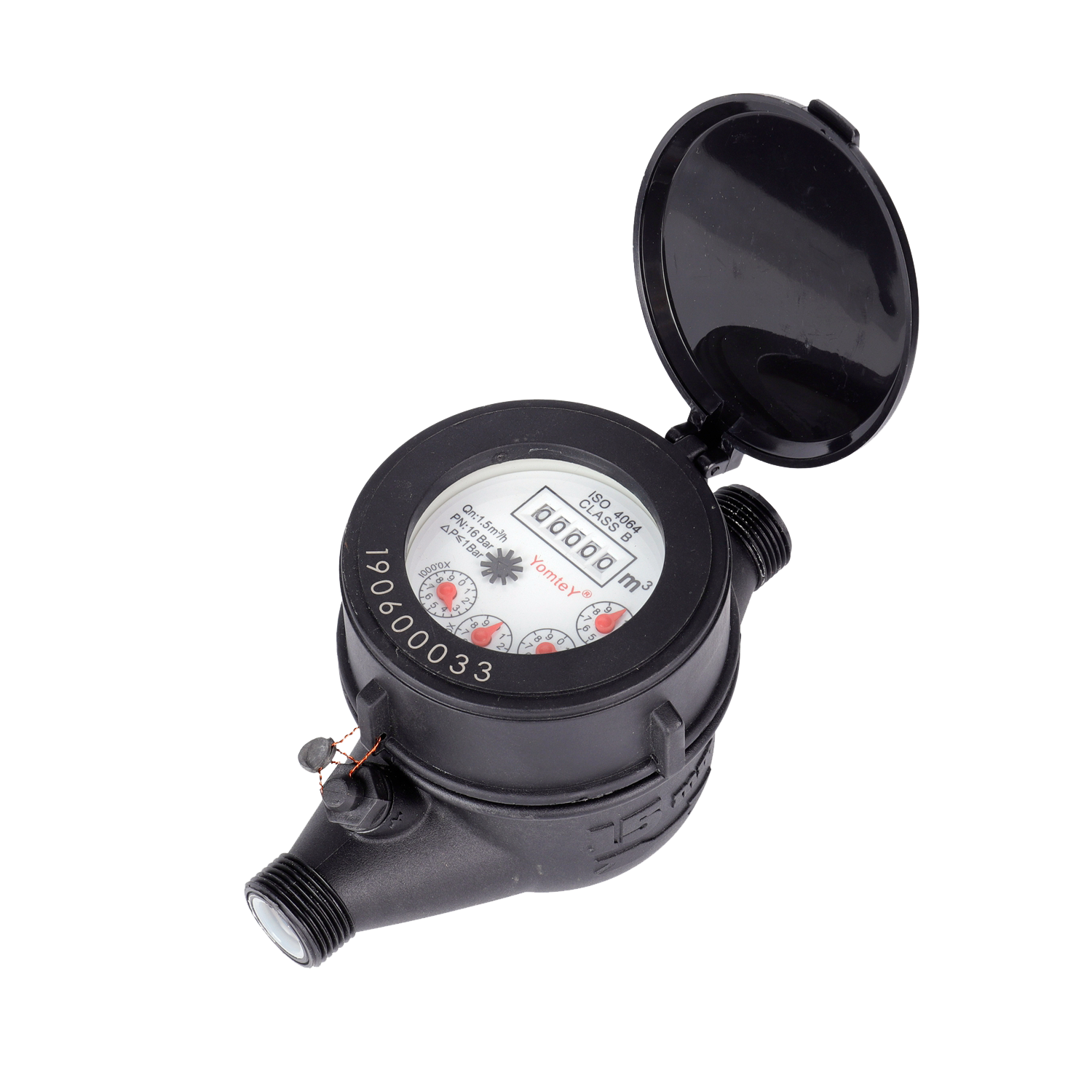

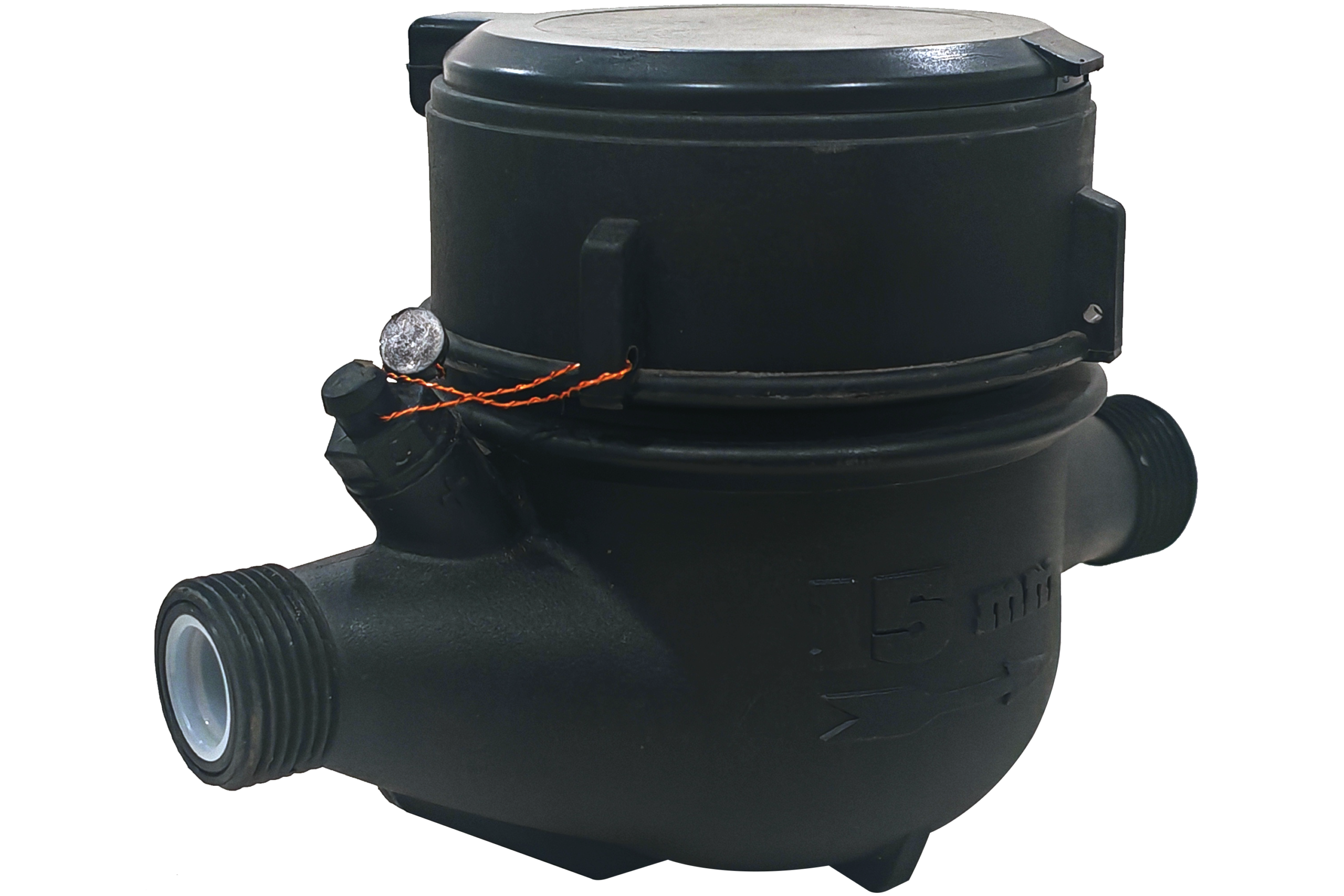

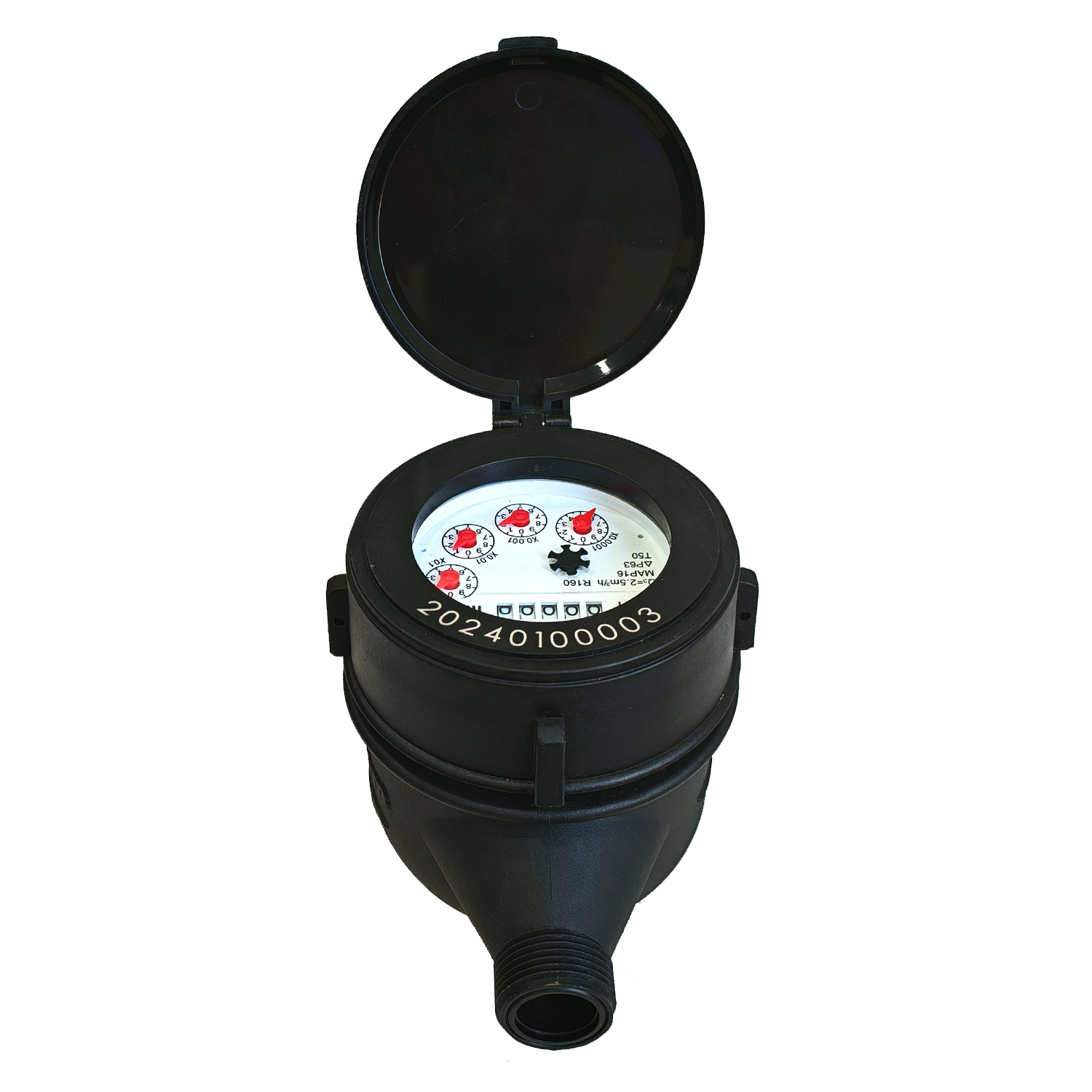

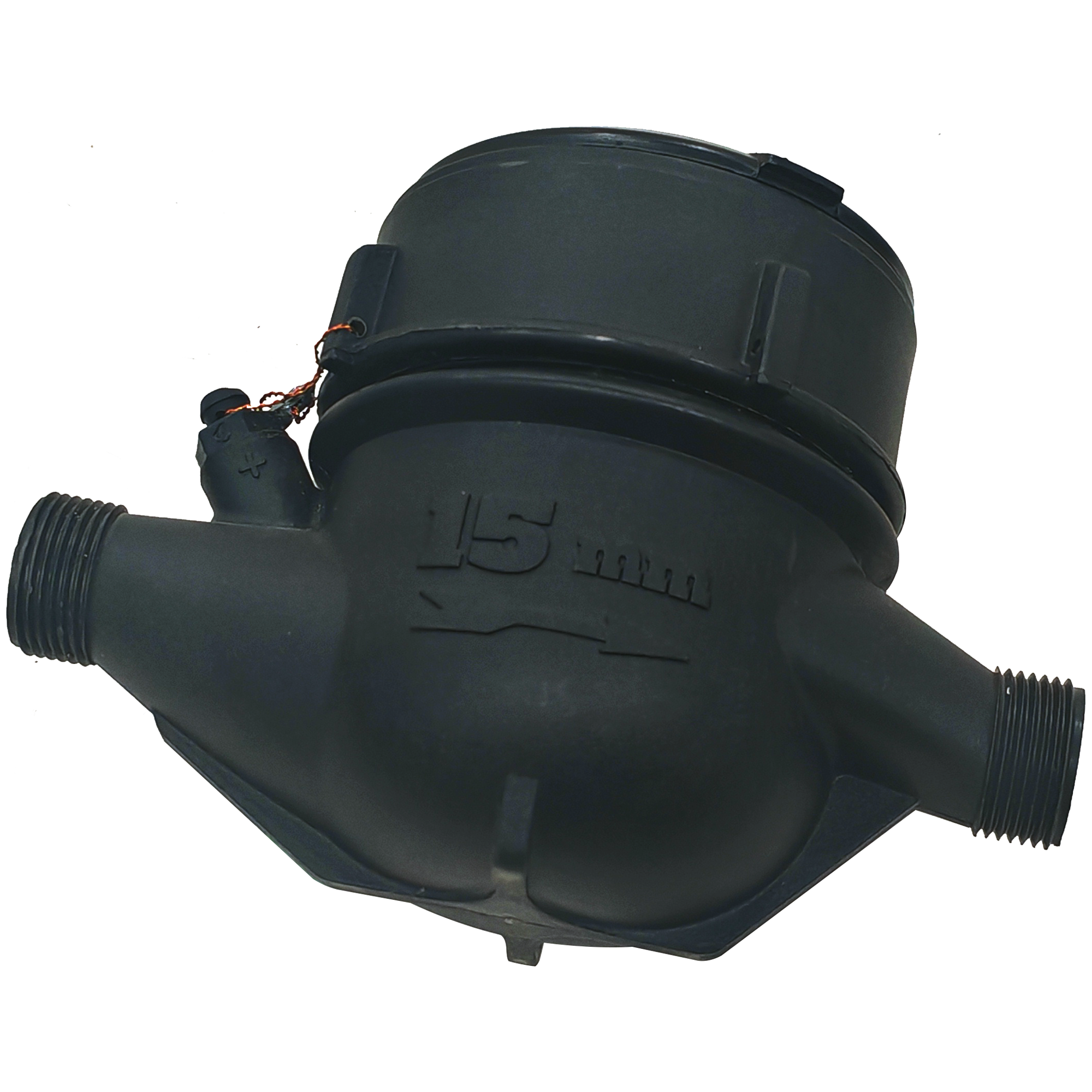

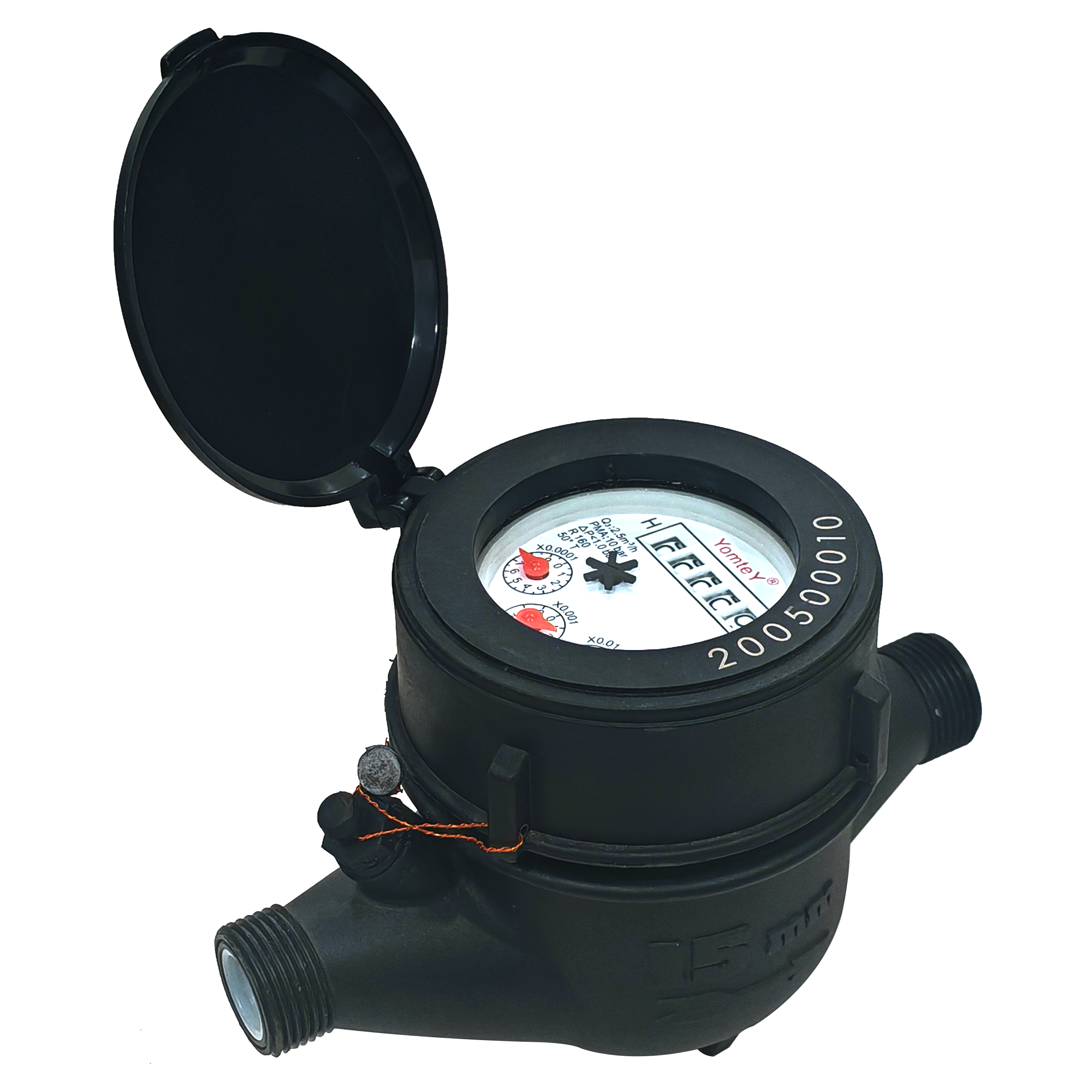

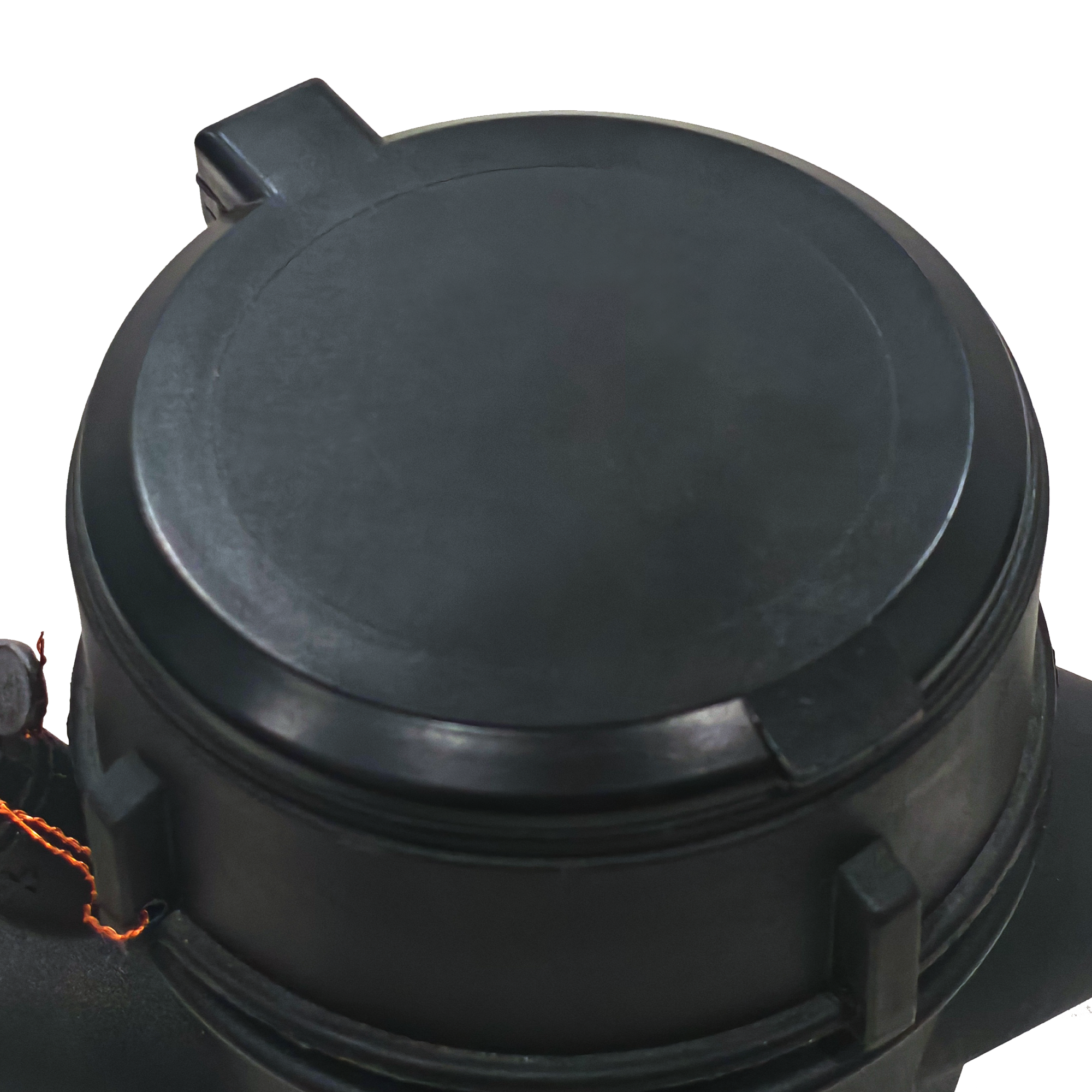

LXSG-15P ~LXSG-50P NYLON MULTI-JET ROTARY VANE WHEEL WET-DIAL TYPE COLD WATER METER

APPLICATION:

This range of water meter is used to measure the total quantity of cold

(hot) potable water which consumed in household or a resident unit

passing through the pipeline .

Compliance with Standard: Technical data conforms to ISO4064 Class BStandard for Horizontal installation

PRODUCT FEATURE:

*Multi-jet, Rotary vane wheel type

*Dry-dial, Magnetic drive, Resistance to exterior magnetic interference .

*Selected high quality materials for steady, reliable characteristic& good

looking.

*Vacuum sealed register ensures the dial kept free from fog and keep the

*reading clear in a long term service.

*Measuring accuracy conform to ISO4064 Class B Standard.

*Universal use .Easy for interchange and maintenance.

*Blue, grey, black of nylon body color for option.

MAXIMUM PERMISSIBLE ERROR

In the lower zone from Qmin inclusive up to but excluding Qt is±5%

In the upper zone from Qt inclusive up to and including Qs is±2%(Hot water meter±3%)

WORKING CONDITION

Water temperature: :0℃≤t≤40℃(For cold water meter )

Water pressure: 1. :≤1.0<MPa

2. ≤1.6<MPa

INSTALLATION REQUIREMENTS:

1.  Meter should be installed in horizontal position with register face upwards.
2. Pipeline must be flushed before installation .
3. The meter should be constantly full of water during operation.
