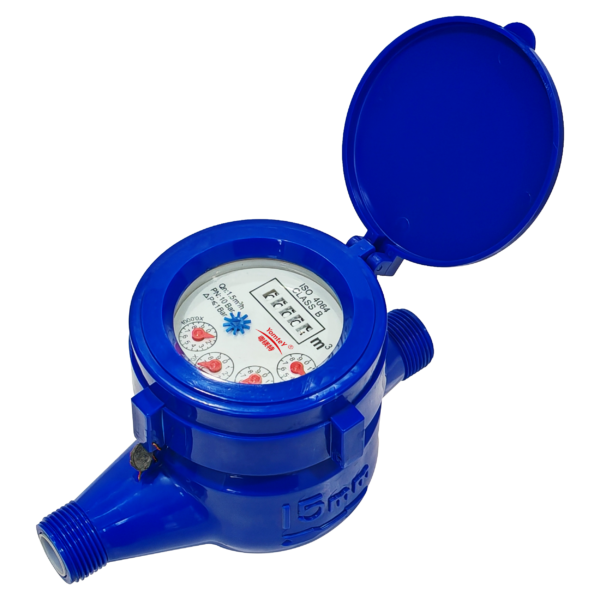

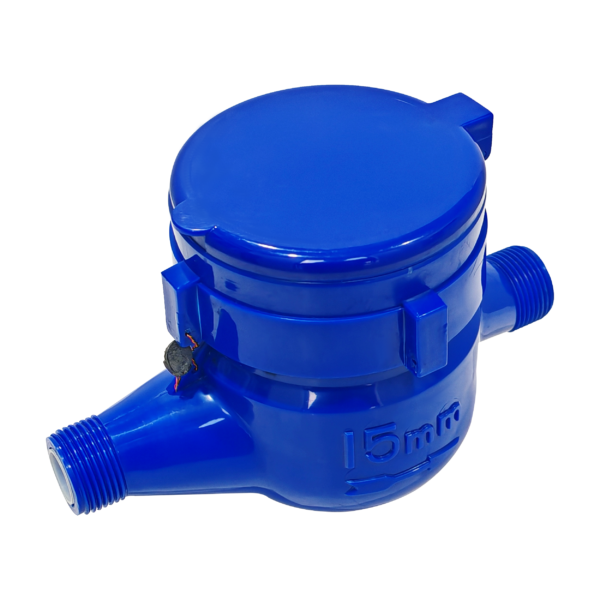

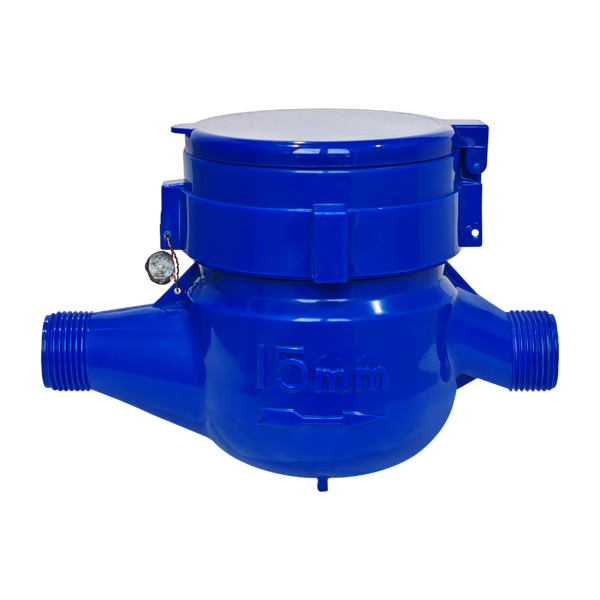

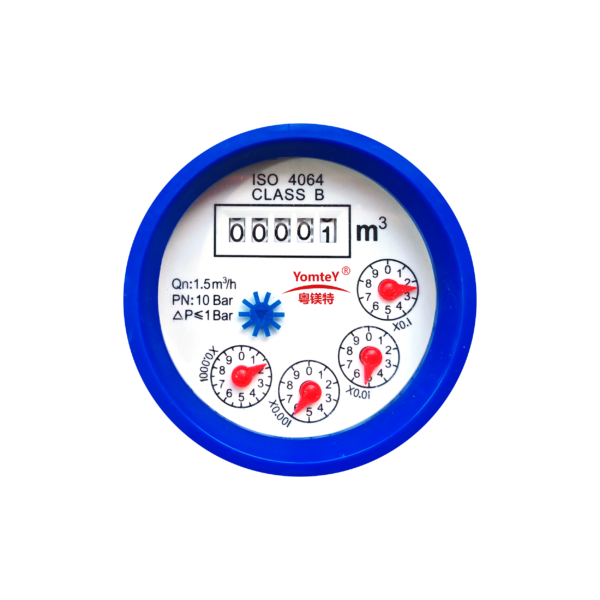

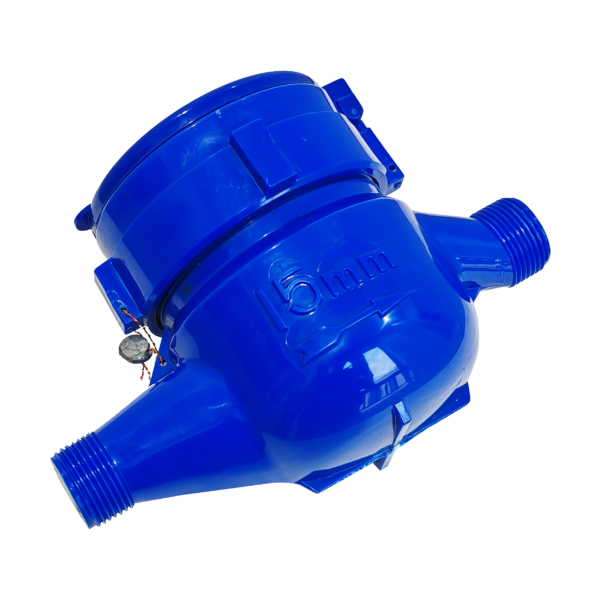

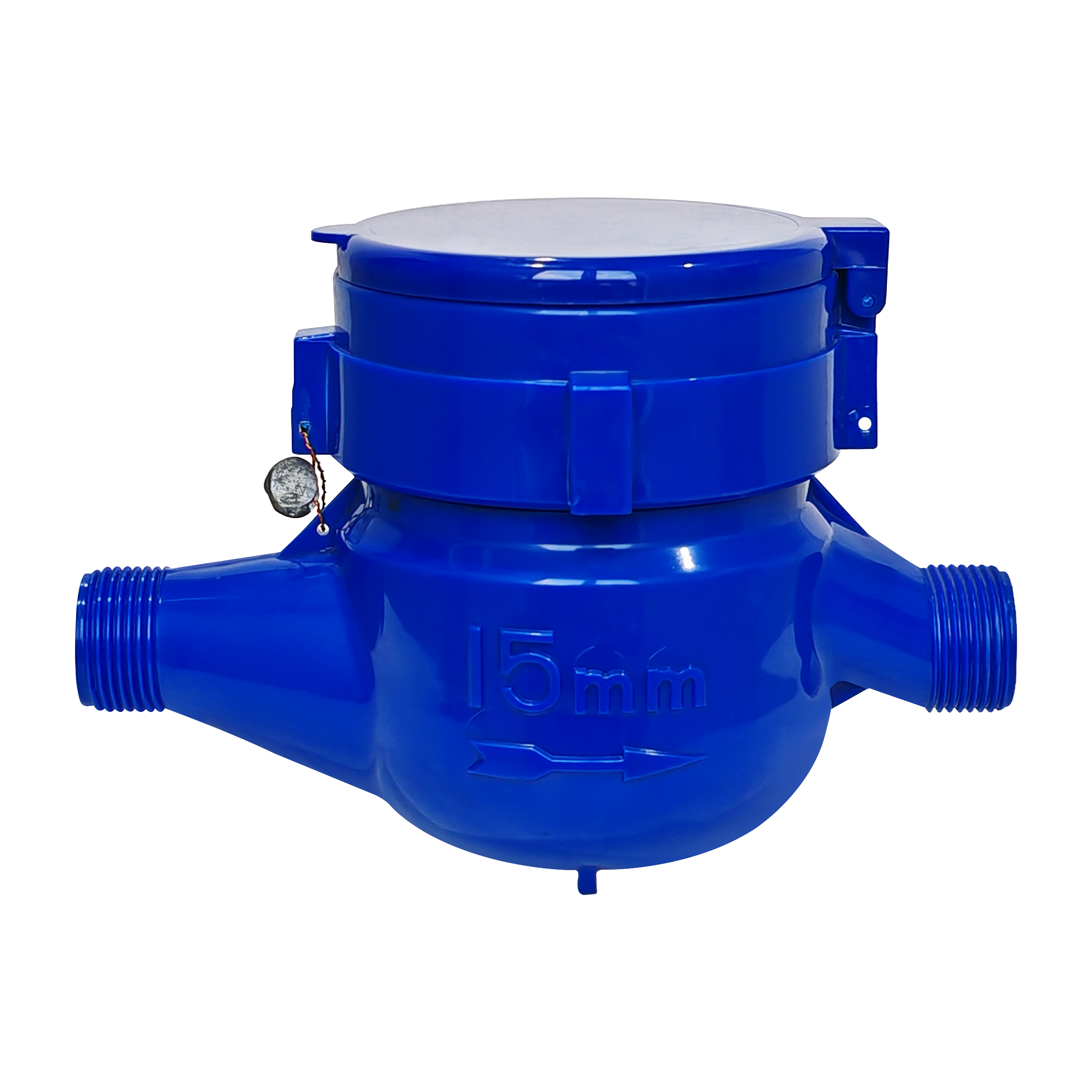

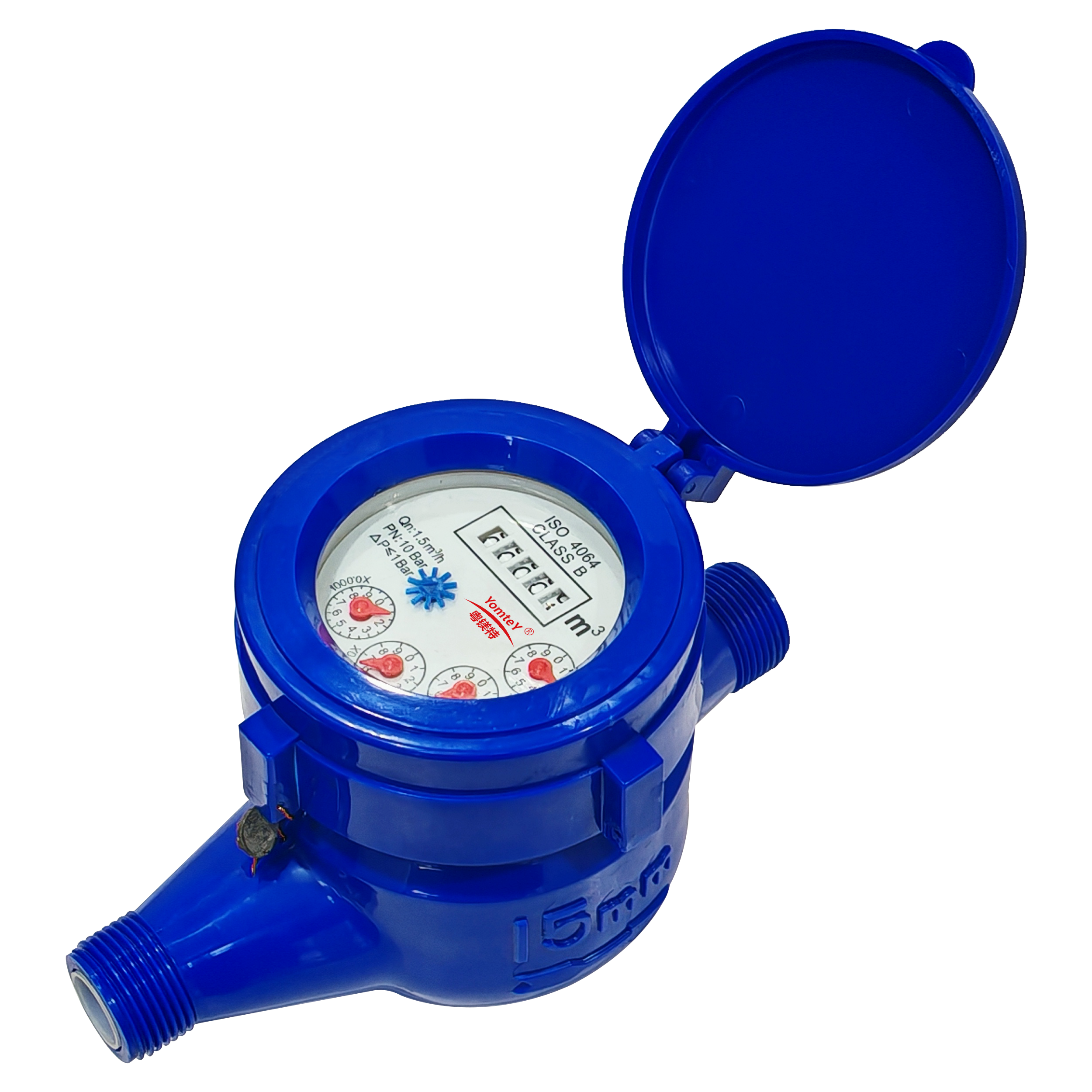

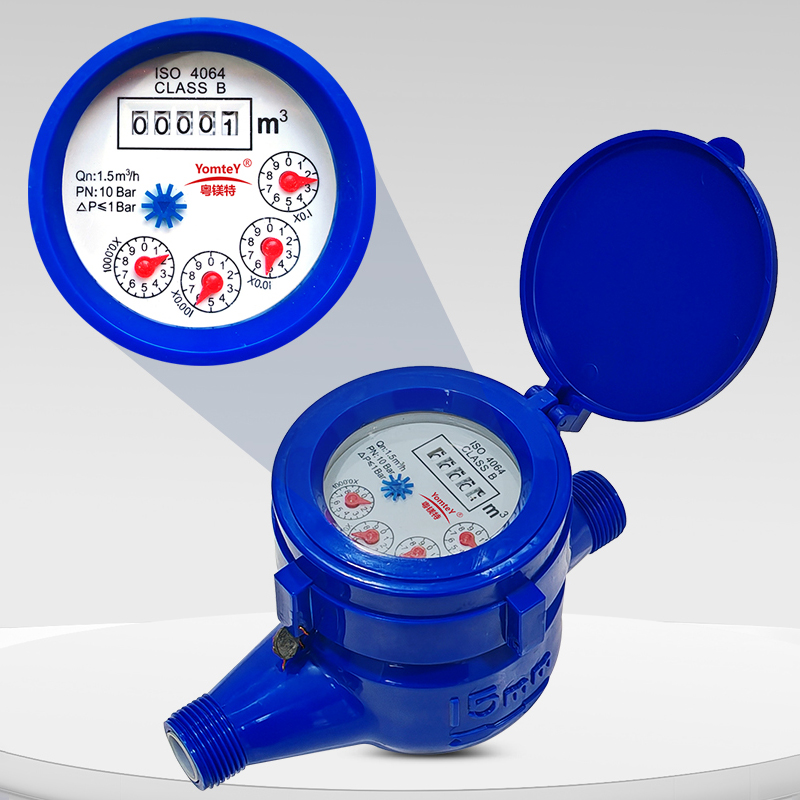

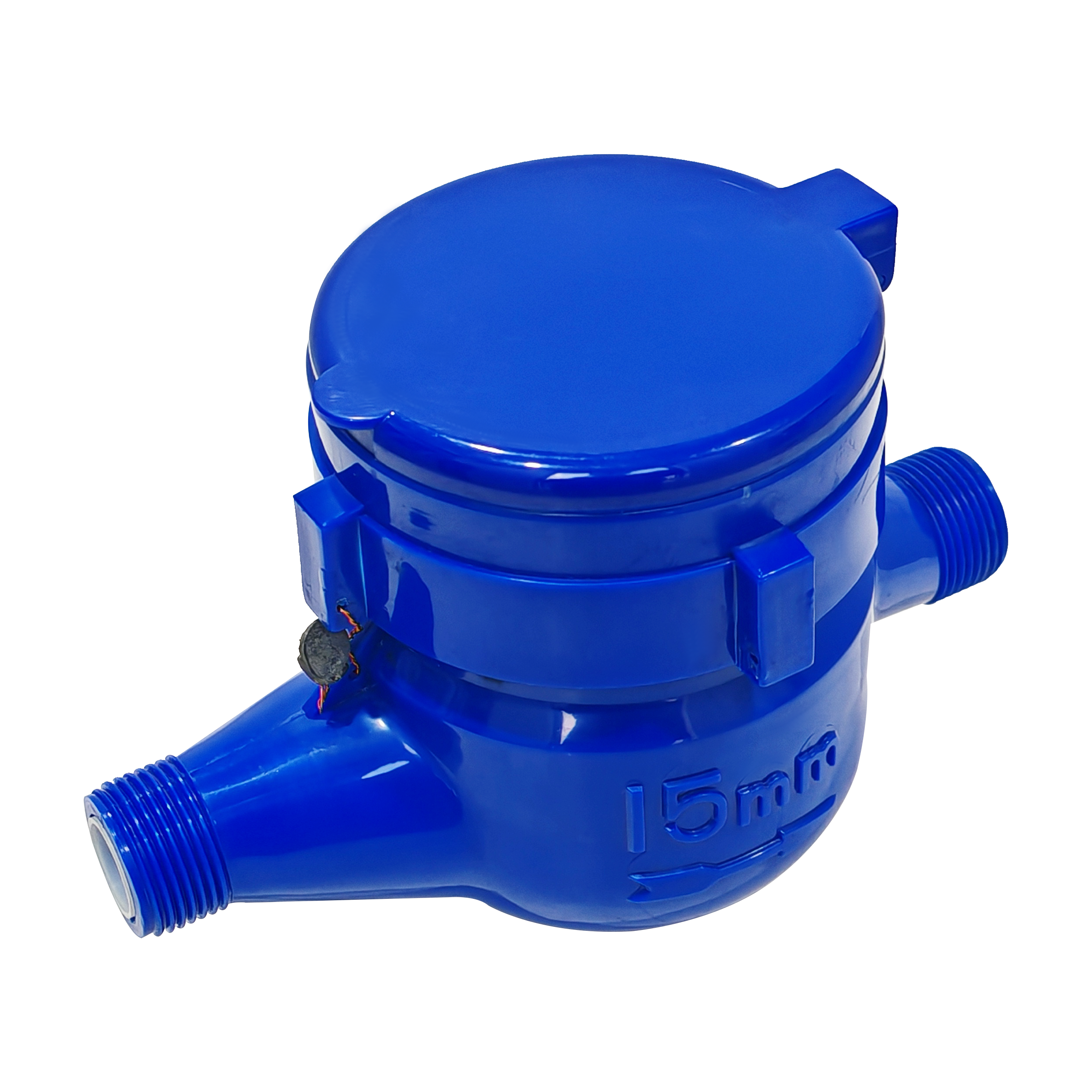

Multi-jet Dry-dial Type Cold Water Meter LXSG- 15EP ABS

Technical Specifications:

1.Type name:Multi-jet dry-dial ,Magnetic drive
2.Model No.: LXSG- 15EP
3.Standard:ISO 4064 Class B
4.Material: ABS plastic
5.Feature :Anti-magnet

Installation requirements:

1. Meter should be installed in horizontal position with the register face upwards
2. Pipe line must be flushed before installation
3. The meter should be constantly full of water during operation

Maximum permissible error:

In the lower zone from Qm in inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤50℃ （For cold water meter）
Water pressure: ≤10bar （16bar on request）

Competitive Advantage:

Low price
Stable quality
Long time guarantee
100% tested
On time delivery

General Product Information:

Minimum Order Quantity: 1000pcs
Packaging Details: White box and carton
Delivery Time: 15-30days after receiving deposit
Payment Terms: T/T , L C, West union,etc.
Supply Ability: 50000pcs/month
