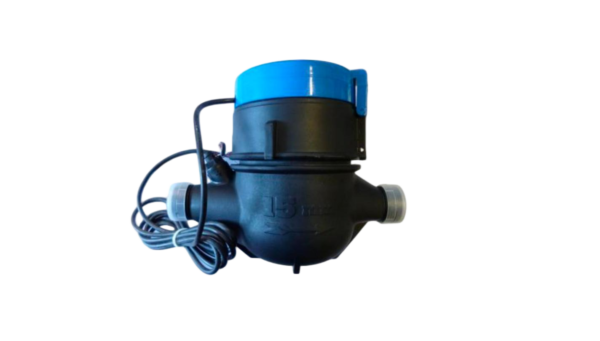

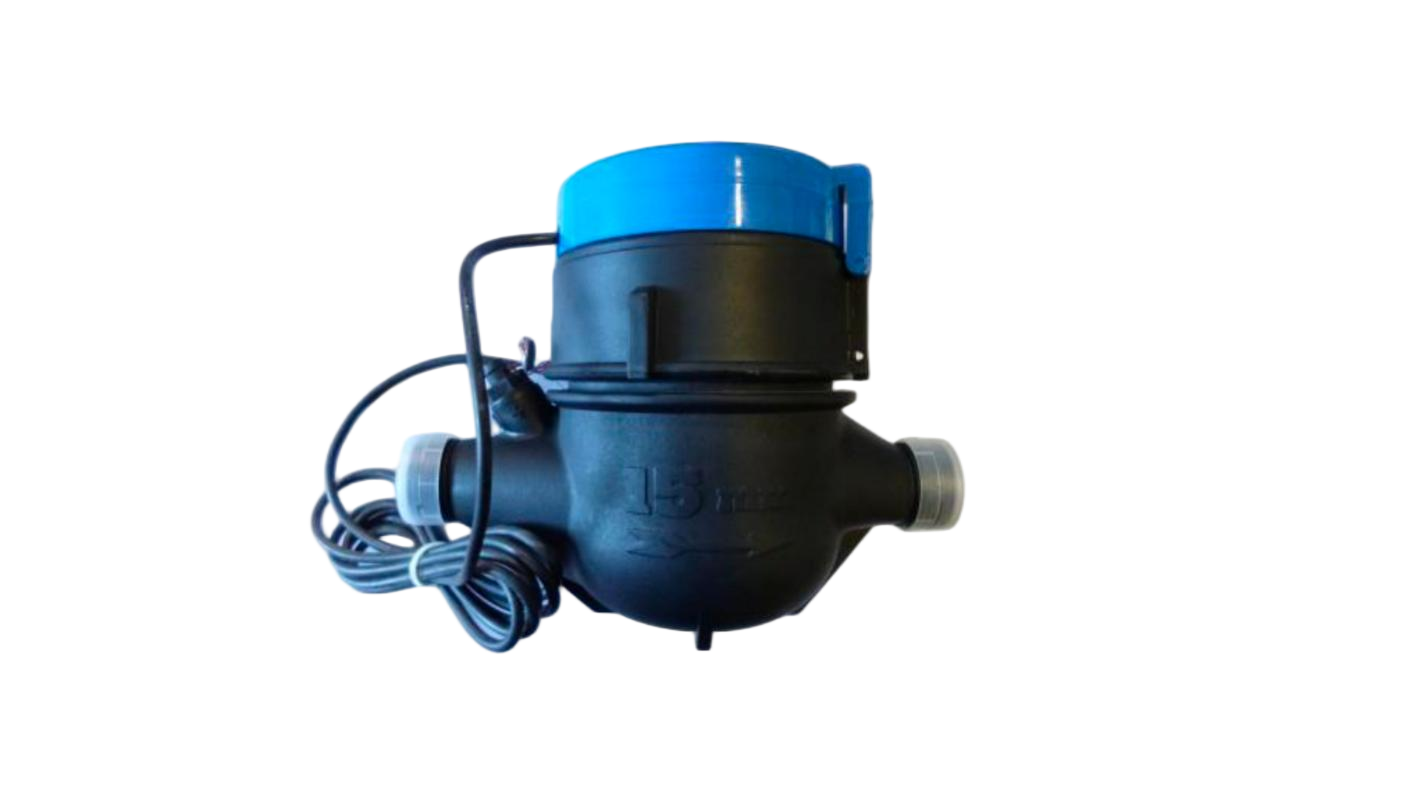

Multi-jet Water Meter With Remote Reading DN15mm

Quick Detail:

1.Type name: Multi-jet dry-dial
2.Model No.: LXSG- 15E2, LXSG- 15P2
3.Standard :ISO 4064 Class B
4.Material: Brass
5.Feature :Inlet strainer and return valve is for option
6.Remote reading device

---

Product features:

Multi-jet ,Rotary vane wheel type
Dry-dial, Magnetic drive ,Resistance to exterior magnet interference
Material : Brass
Super dry type,brass shell,direct reading, external regulating device.
Magnetic drive, lower transmission resistance
Magnetic shield, for external magnetic field protection
Remote reading transmission system and anti-theft device,the pulse
constant :10L/Pulse, 100L/Pulse , 1000L.Pluse

---

Installation requirements:

1.Meter should be installed in horizontal position with the register face upwards
2.Pipe line must be flushed before installation
3.The meter should be constantly full of water during operation

---

Maximum permissible error:

In the lower zone from Qm in inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%

---

Working Condition:

Water temperature:0℃≤t≤50℃ （For cold water meter）
Water pressure: ≤10bar （16bar on request）

---

Competitive Advantage:

100% tested
Long time guarantee

---

General Product Information:

Minimum Order Quantity: 500pcs
Packaging Details: White box and carton
Delivery Time: 15-30days after receiving deposit
Payment Terms: T/T , L C, West union,etc.
Supply Ability: 50000pcs/month
