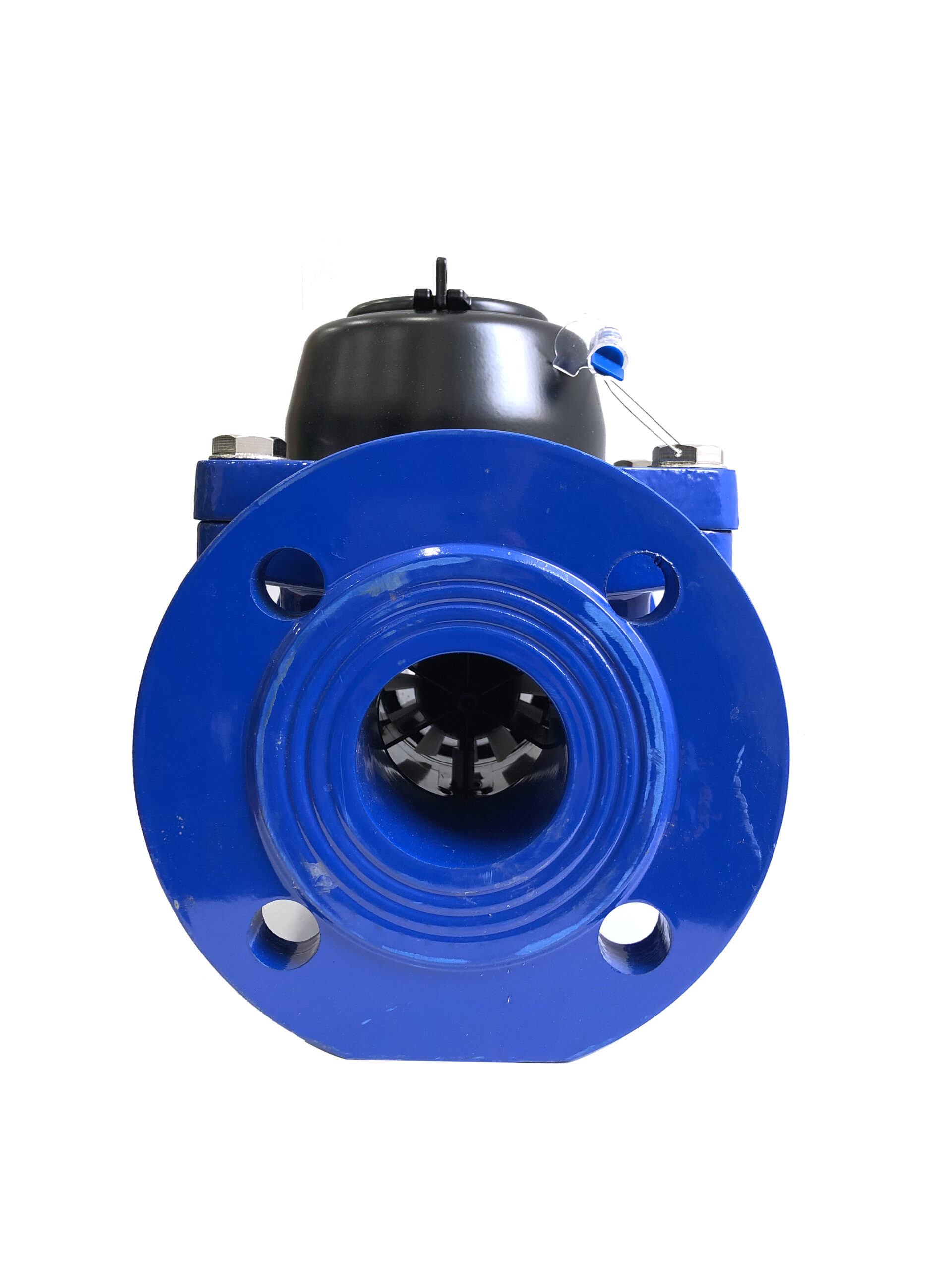

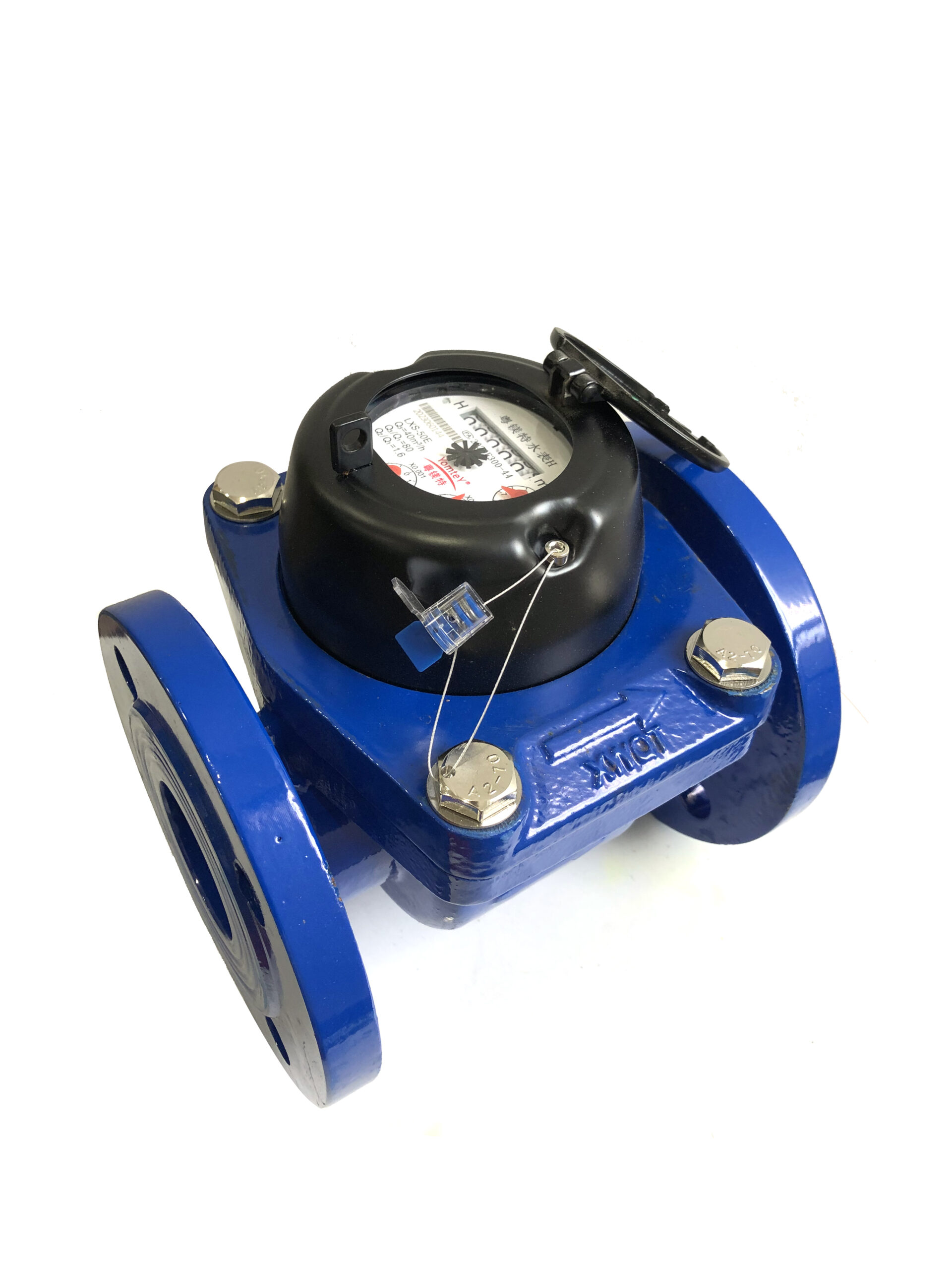

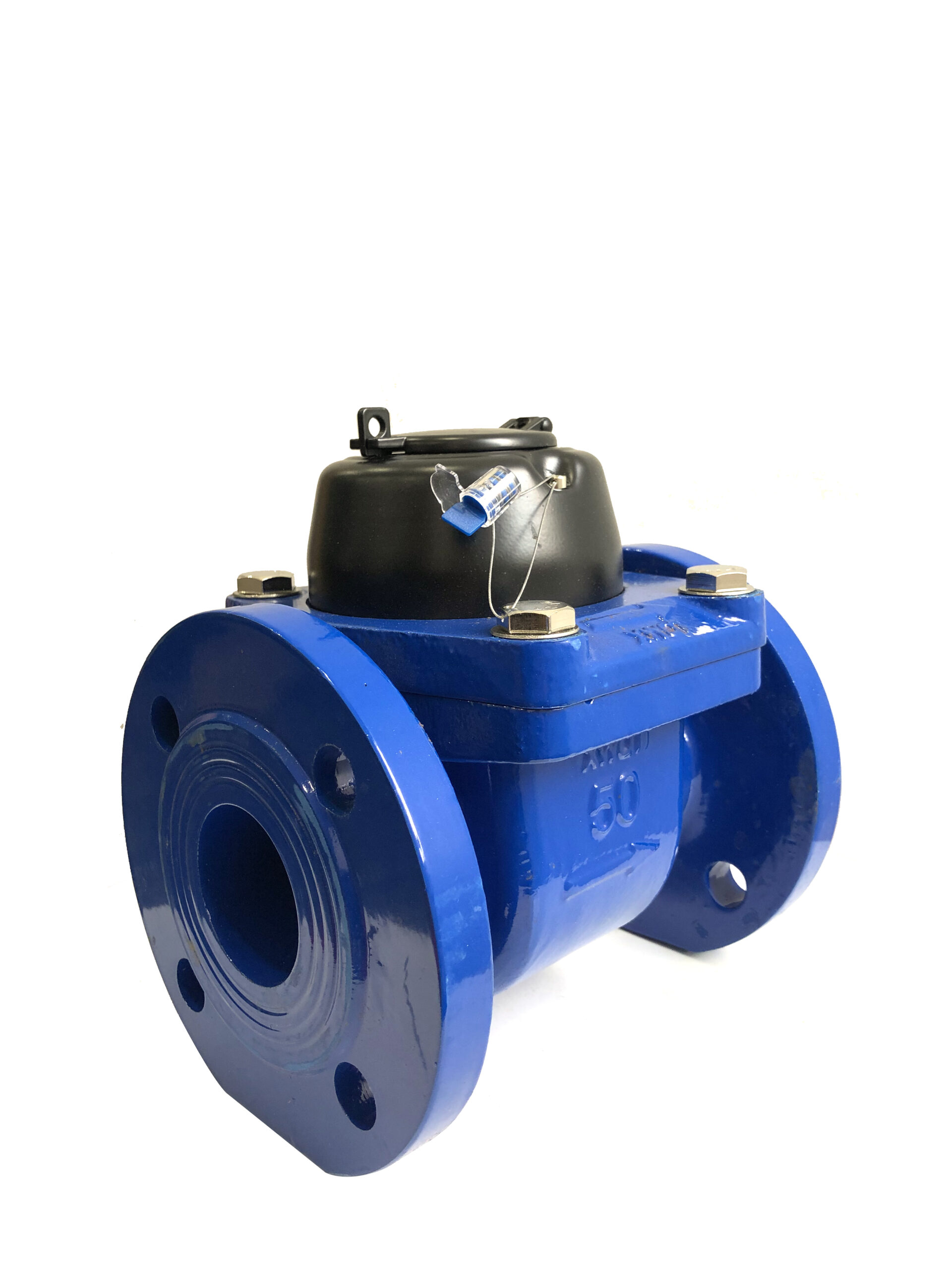

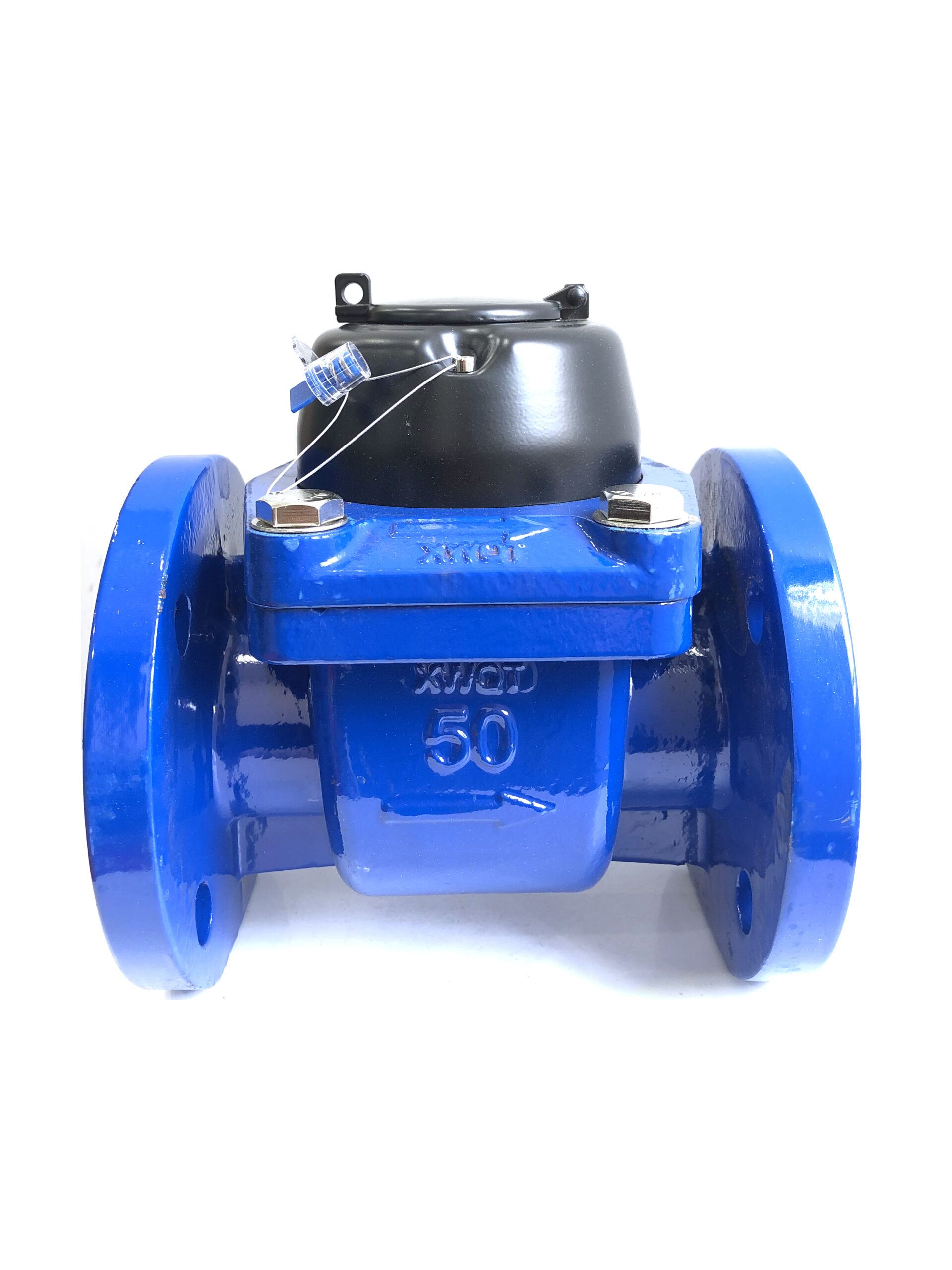

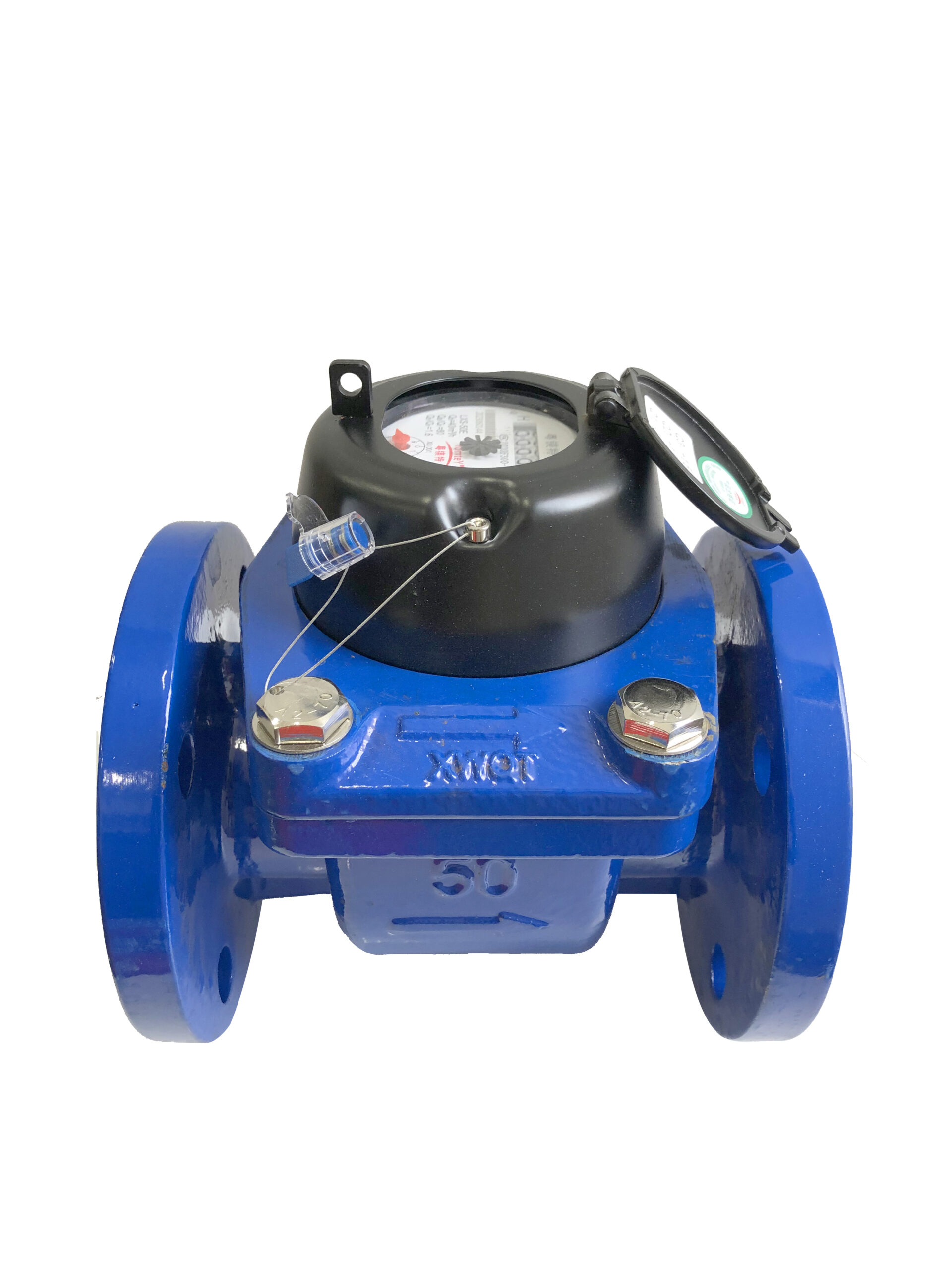

Large Diameter Rotary Vane Wheel Dry-Dial Multi-flow Water Meter

Product Overview

The Large Diameter Rotary Vane Wheel Dry-Dial Multi-flow Water Meter is designed for high-capacity water measurement in municipal and industrial applications. Combining multi-jet technology with a rotary vane wheel mechanism, this meter delivers stable accuracy, strong durability, and reliable performance under high flow conditions.

Key Features

• Large Diameter Design
  Ideal for high flow rate measurement in pipelines, ensuring efficient water monitoring in large-scale systems.
• Multi-Flow (Multi-Jet) Structure
  Multiple inlet channels distribute water evenly, improving measurement accuracy and reducing internal wear.
• Rotary Vane Wheel Mechanism
  Ensures smooth rotation and stable performance even under fluctuating flow conditions.

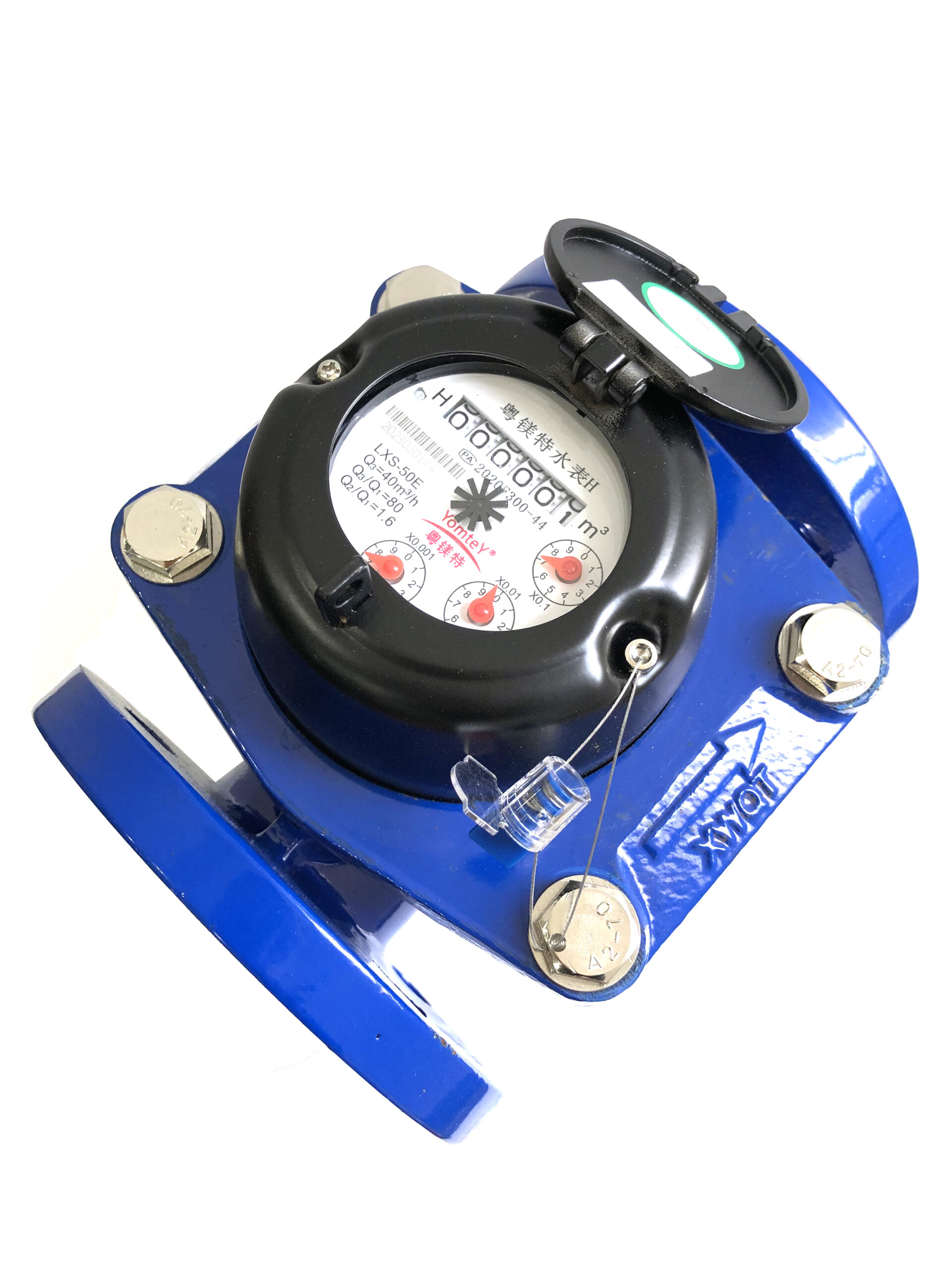

• Dry-Dial Register
  Fully sealed dial prevents water contact, keeping readings clear and extending service life.
• Heavy-Duty Construction
  Built with robust materials for long-term durability in demanding environments.
• Corrosion & Pressure Resistance
  Suitable for various water qualities and high-pressure systems.

Technical Specifications

• Size: DN50 – DN300
• Temperature Class: T30 (Cold Water)
• Pressure Rating: PN16 / PN25 (Optional)
• Accuracy Class: Class B / Class C
• Installation: Horizontal
• Standard: ISO 4064

Applications

• Municipal water supply networks
• Industrial water systems
• Irrigation and agricultural projects
• Commercial and infrastructure projects
