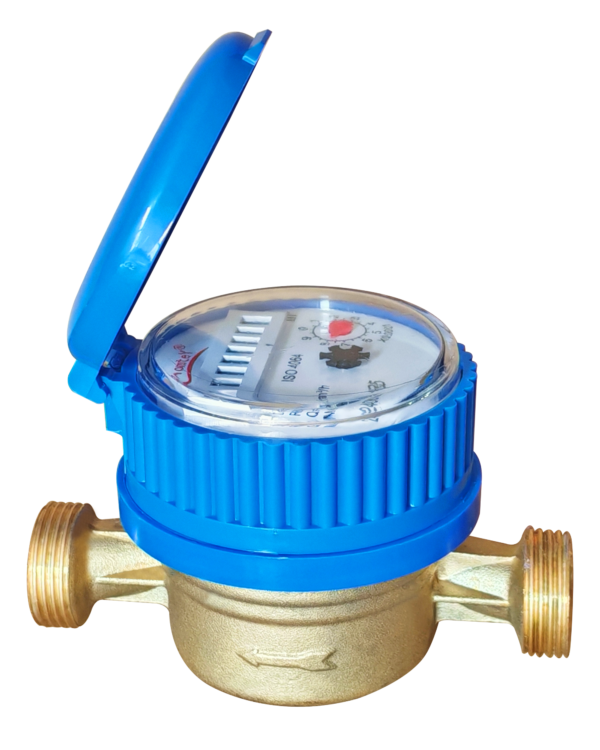

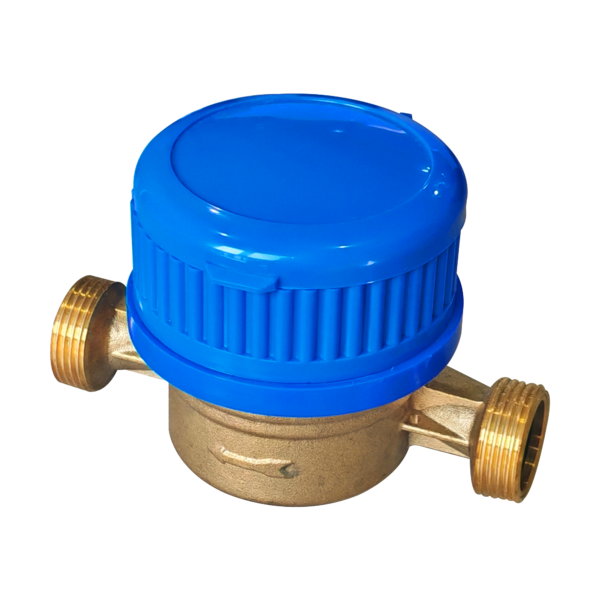

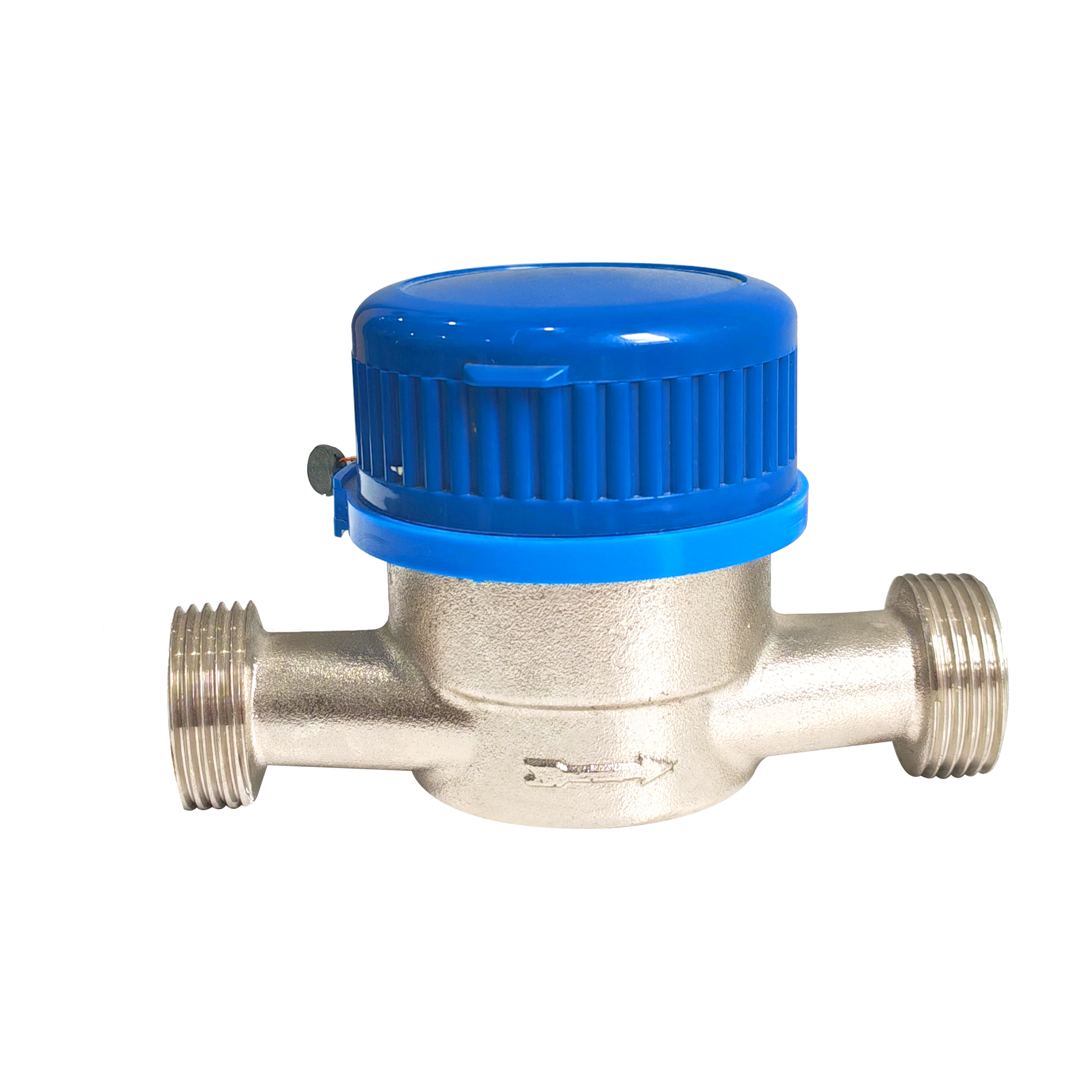

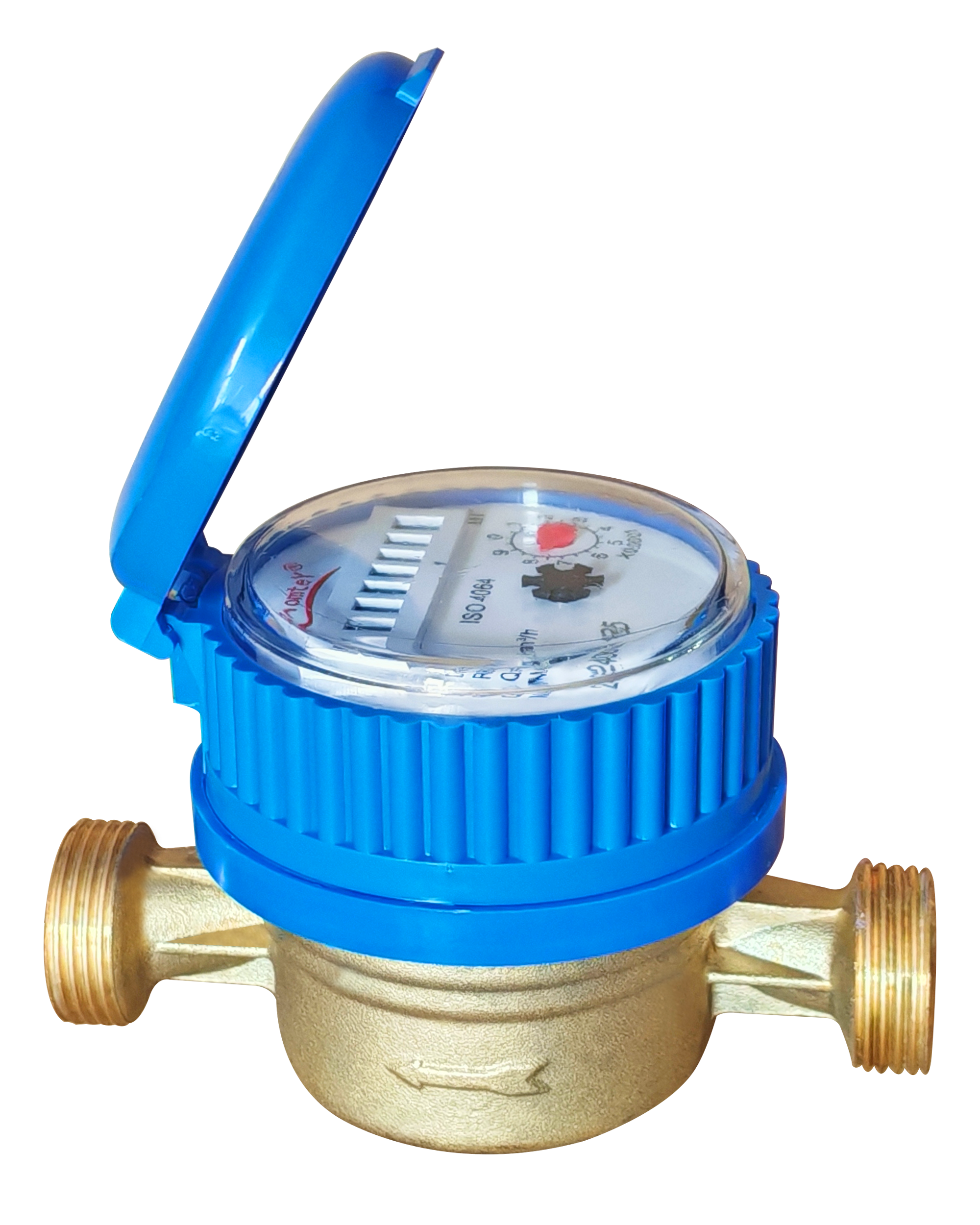

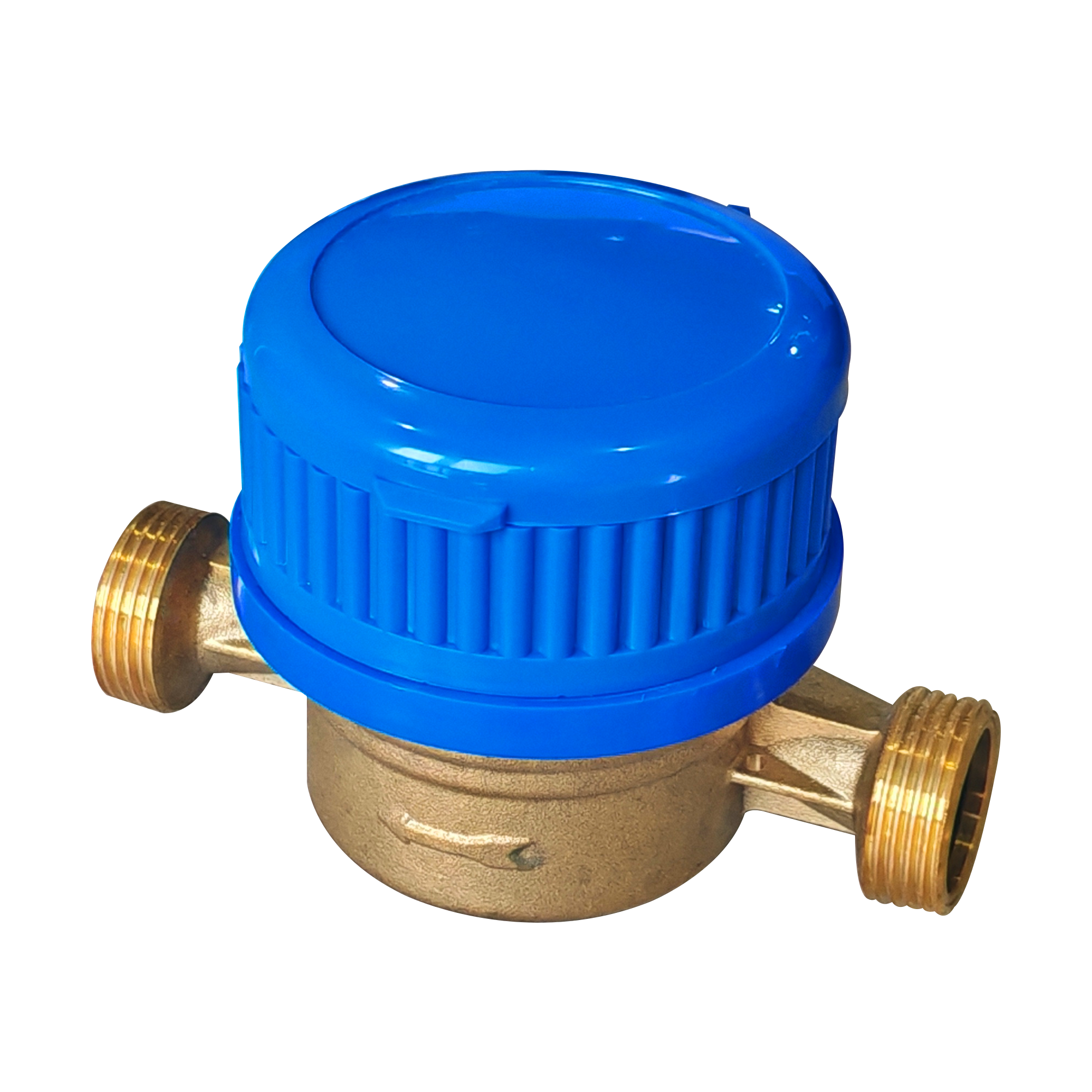

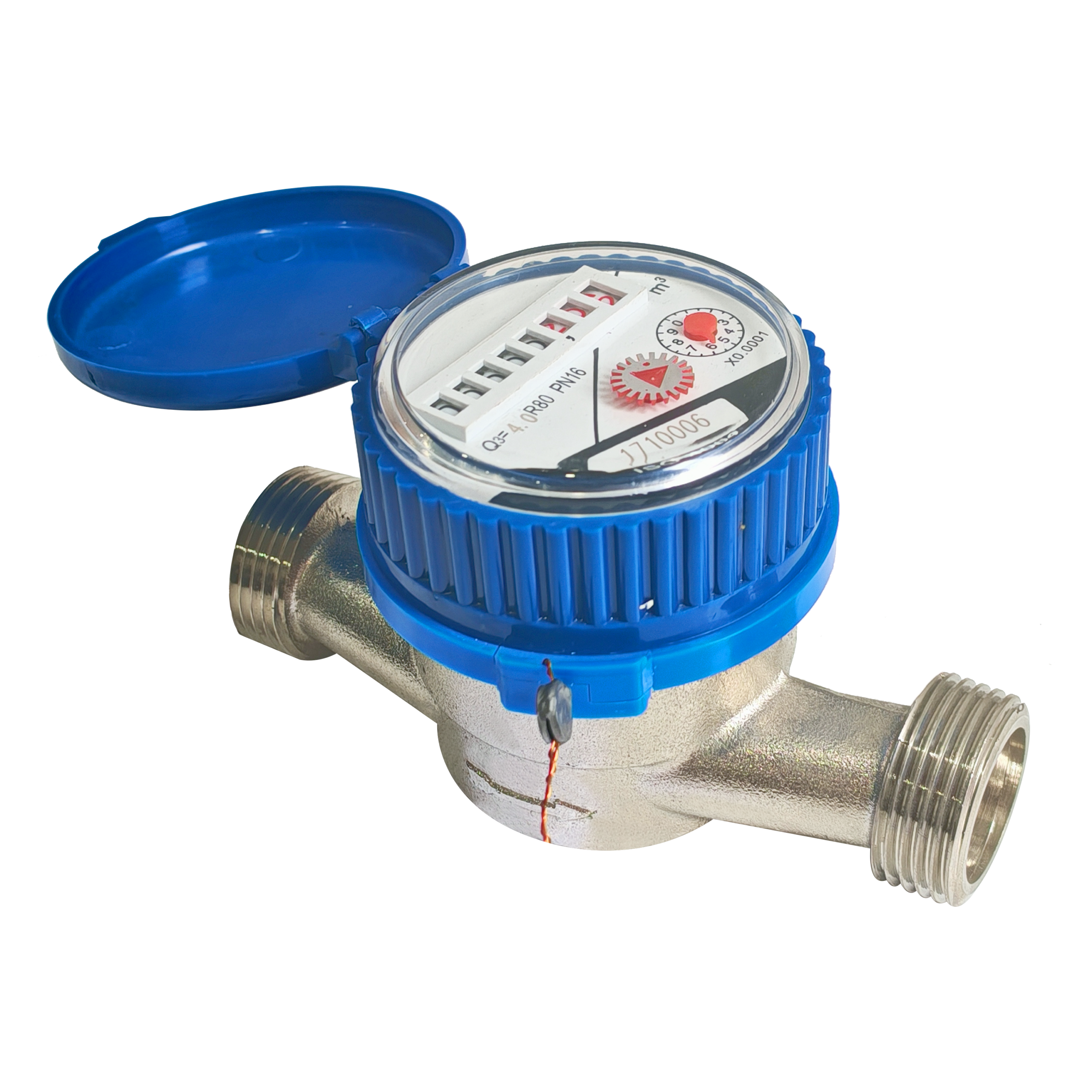

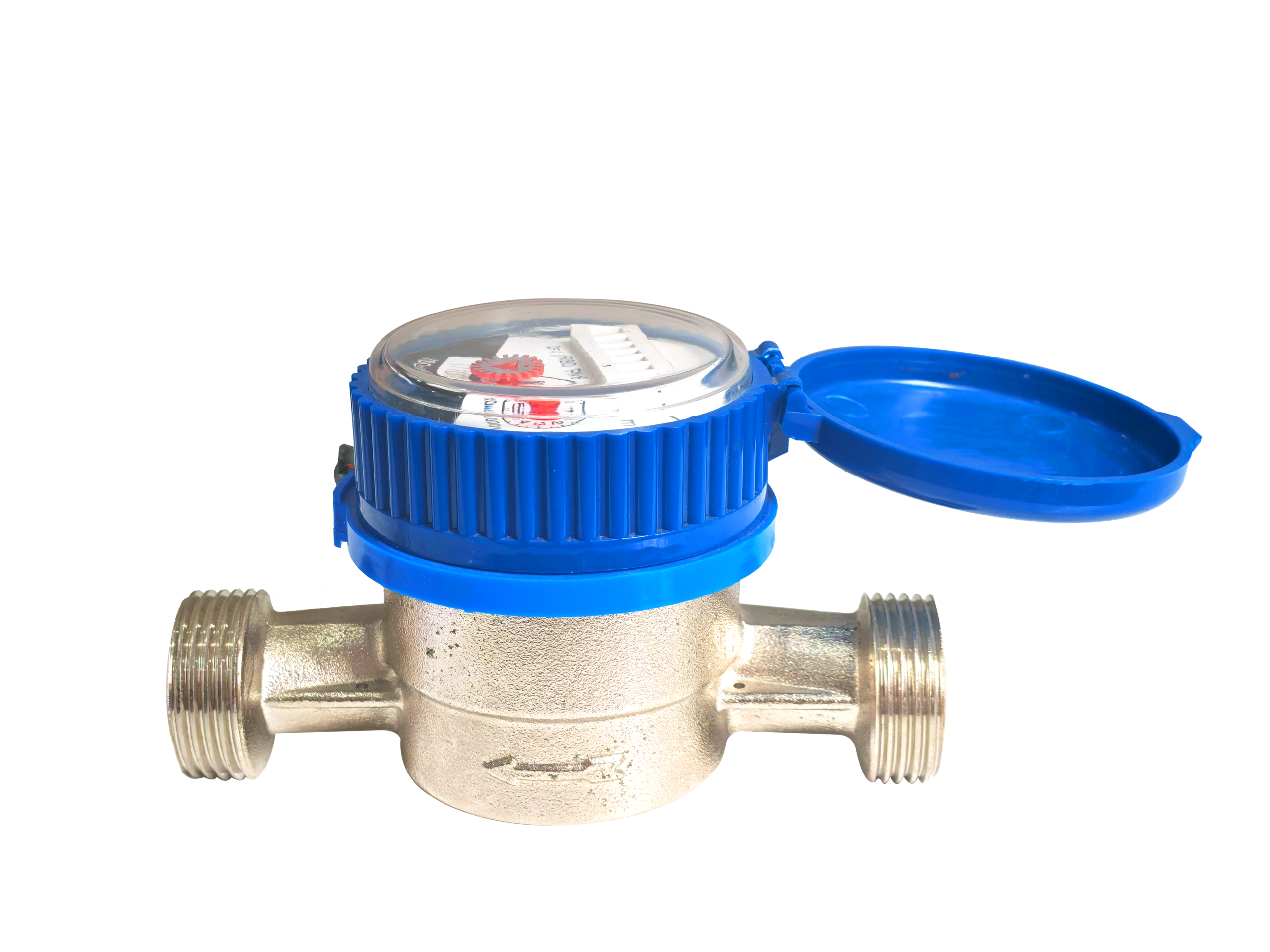

LXSC-15D ～20D Rotary Vane Wheel Dry-dial Single-jet Flow Water Meter
Application: Measuring the volume of cold potable water passing throught the pipeline.
Features: Super dry type, Magnetic drive;
Small, light, free rotating register,easy and long term clear reading;
Magnet resistance, pulse output transmit device for option
Working Condition:
water temperature：≤40℃ for cold water (≤90℃ for hot water)
water pressure:≤1.6Mpa（1Mpa）
Maximum Permissible Error:
a)In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
b)In the upper zone from Qt inclusive up to and including Qs is ±2%
Main Technical Data:
| Type | size mm |
Class | qs Max Floun |
qP Nominal flow |
qt Transitional flow |
qmin Min. Flom |
Min. Reading |
Max Rreading |
Lengthp L |
midthl B |
Height H |
Connecting Thread D |
Weight kg |
| m3/h | Lh | m3 | mm | ||||||||||
| LXSC-15D | 15 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 | 110 | 72 | 68 | G 3/4B | 0.7 |
| B | 120 | 30 | |||||||||||
| LXSC-20D | 20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 | 130 | 72 | 69 | G 1B | 0.85 |
| B | 200 | 50 | |||||||||||
