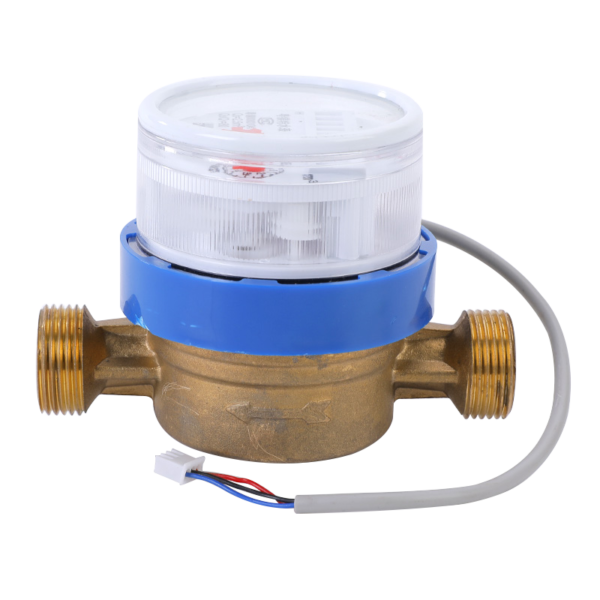

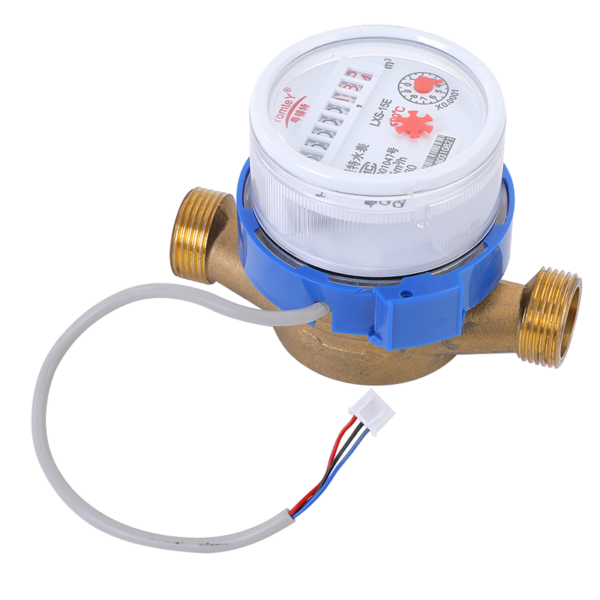

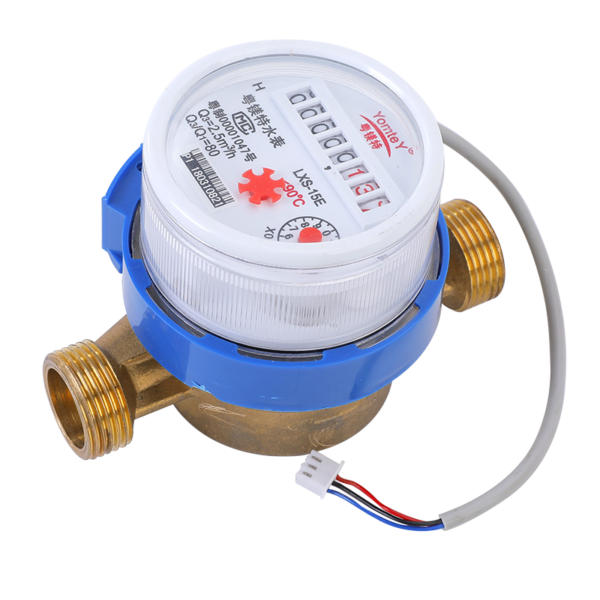

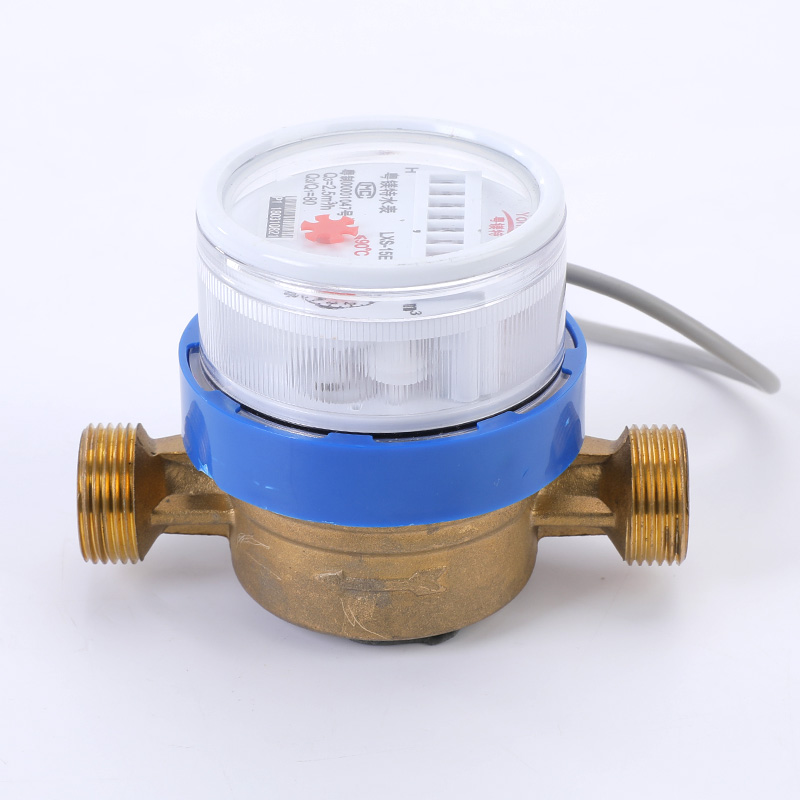

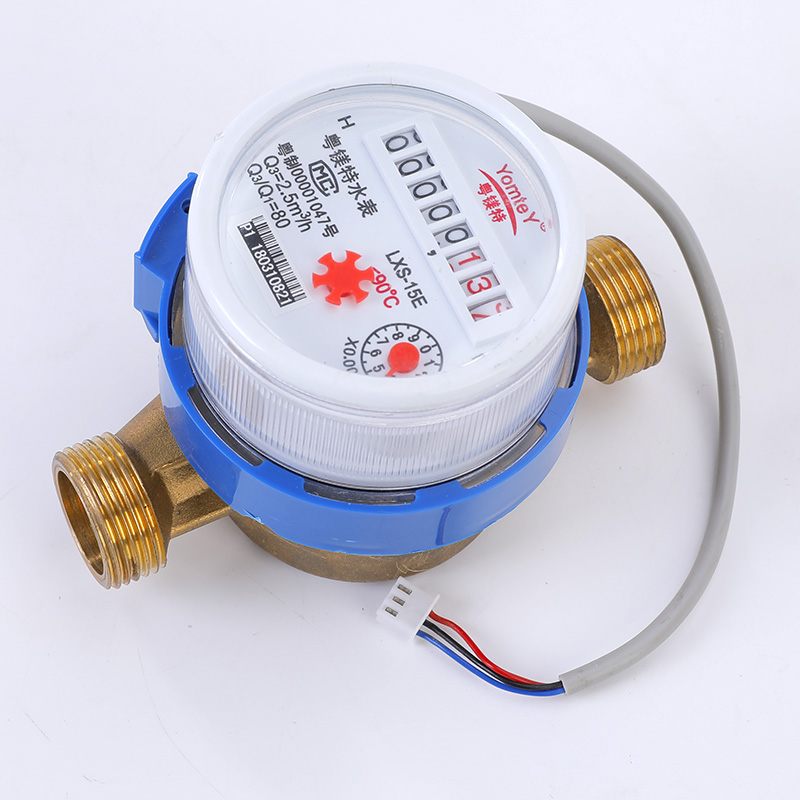

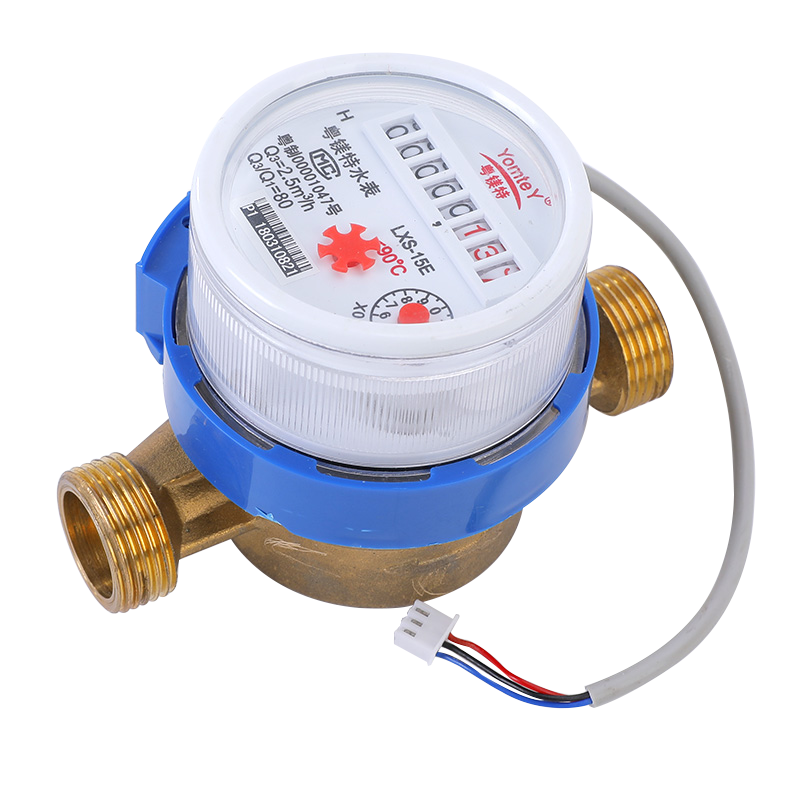

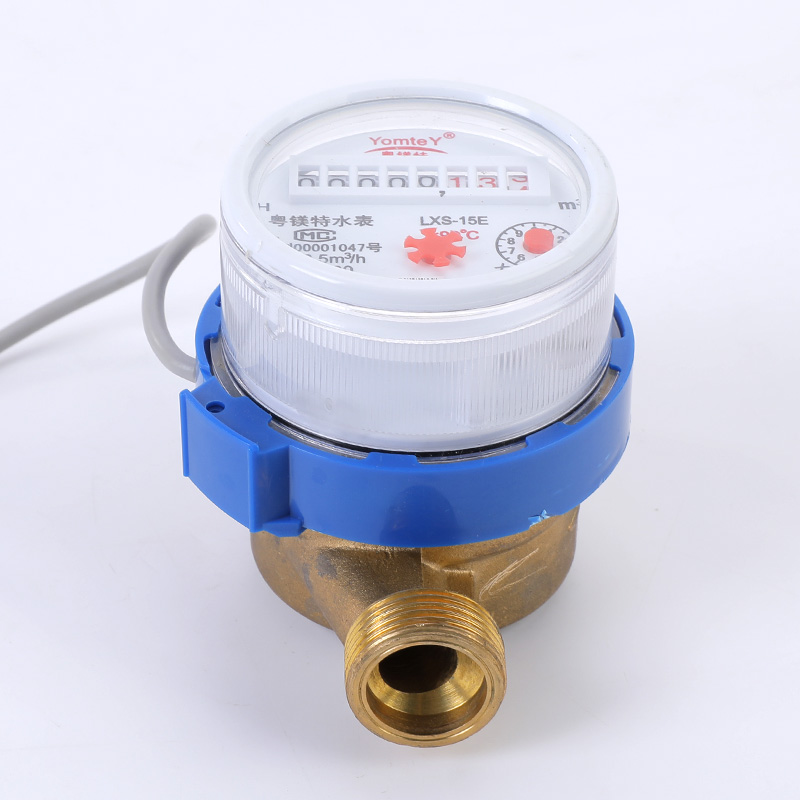

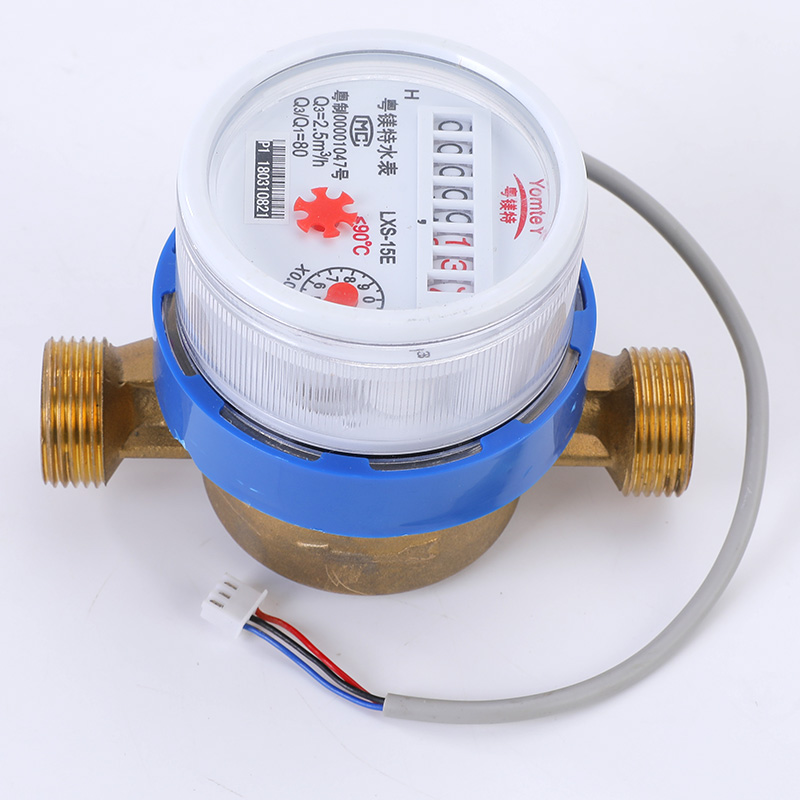

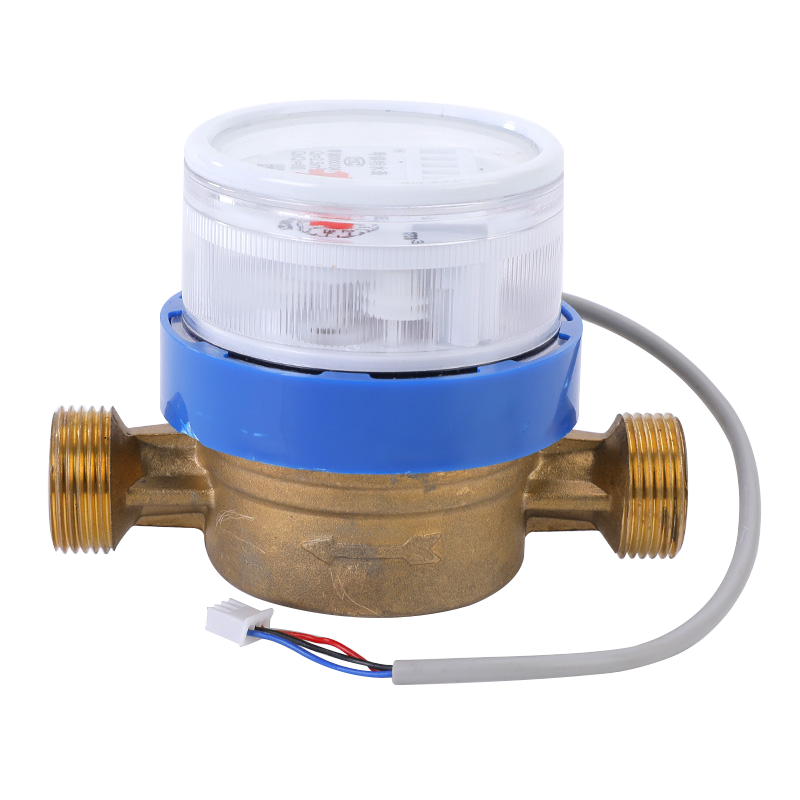

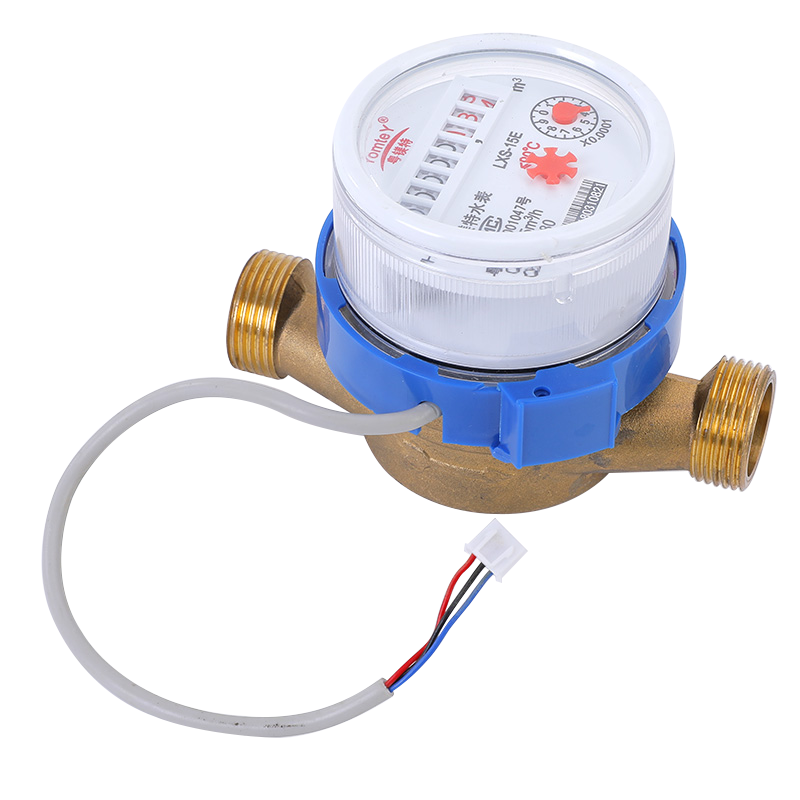

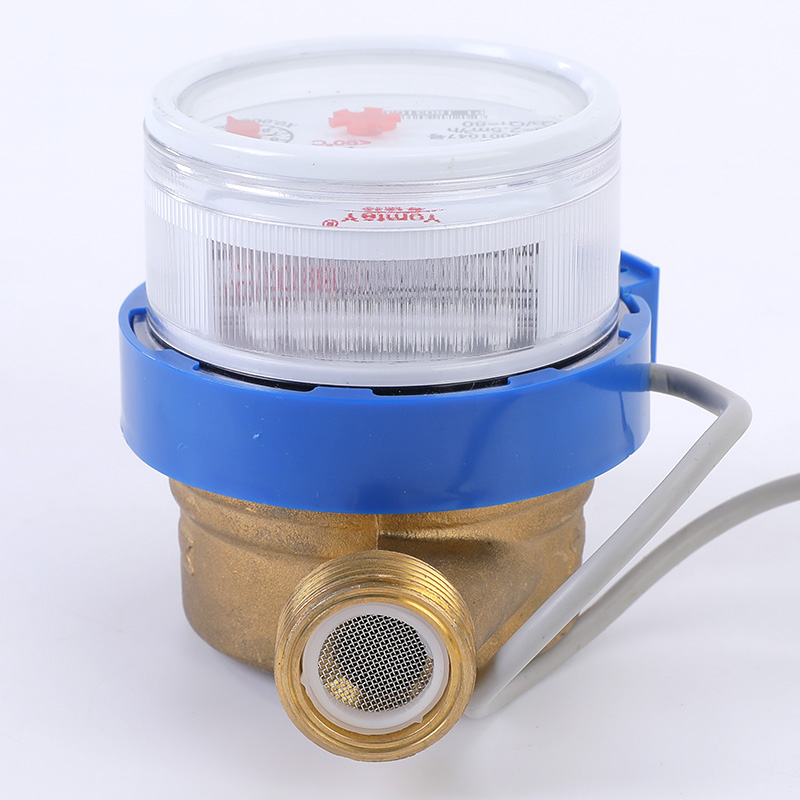

Rotary Vane Wheel Sigle Jet Water Meter

Product Feature

1. The counting mechanism employs vacuum sealing to prevent condensation and atomization.

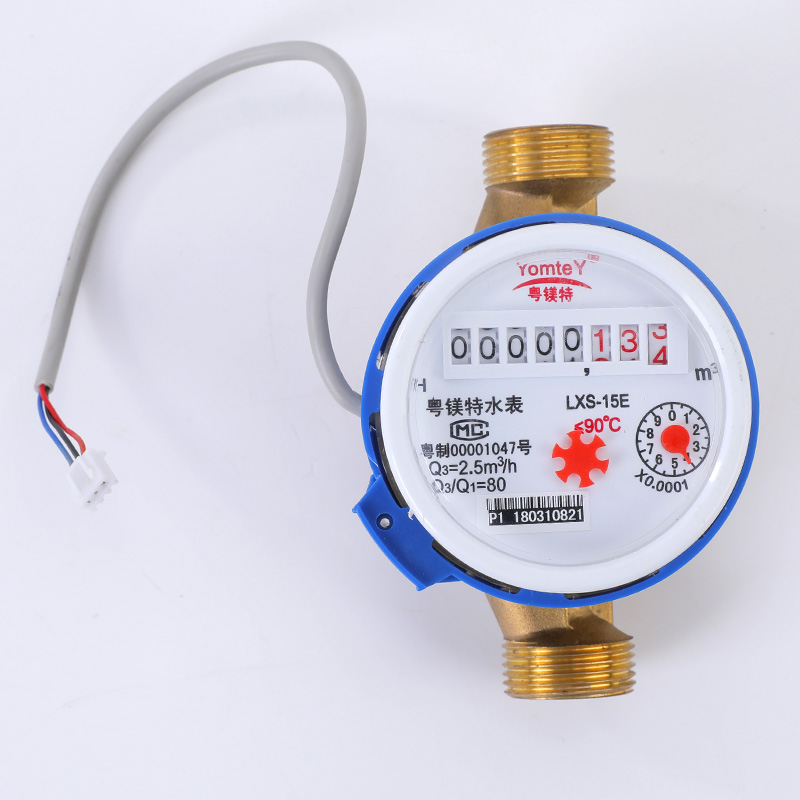

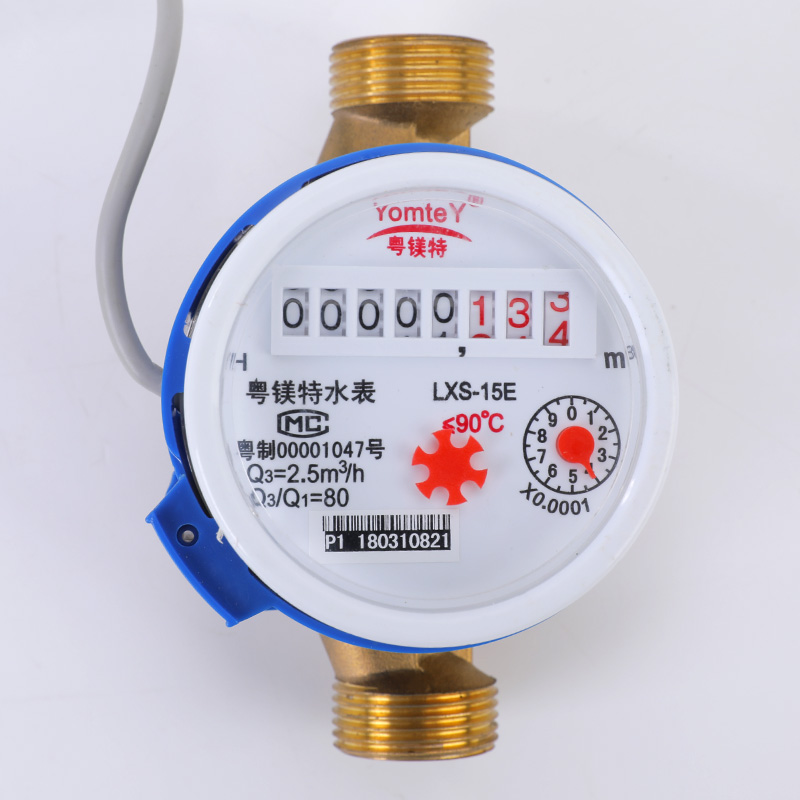

2. The combination display of the dial and pointer can maintain clear readings for a long time.
3. Wide measurement range with low starting flow rate.
4. Select high-quality materials with stable and reliable performance.
5. Applicable to small-diameter pipelines, such as household water supply and small-scale water supply projects.

*Product Parameter

*use:Used to measure and record the total volume of water flowing through a pipeline

*flow pattern:Single stream

*Installation direction:Horizontal

*structure type:Rotary wing type

*shell material:Plastic shell / Copper shell / Iron shell / Stainless steel shell

*Counter type:Dry-type

*remarks:Add remote control functionality based on customer requirements

installation notice

1. Ensure the water meter is installed correctly with its meter reading face facing the side that is easy to observe.
2. The water meter inlet must be installed in the same direction as the water flow (refer to the housing arrow markings).
3. Before installing the water meter, the pipes must be flushed to remove impurities and deposits, preventing the water meter from clogging or inaccurate readings.
4. Ensure all interfaces are properly matched, and use appropriate tools and materials to secure and connect the water meter. Apply sealing treatment to the interfaces to prevent leakage.
5. Control valve is installed at the upstream and downstream of water meter to control the water flow during daily use and maintenance.
6. The water meter should be installed in a dry and ventilated indoor area to avoid external environmental influences.
7. Water meter should not be installed at the highest point of the pipeline to avoid air accumulation which may affect the stability of water flow and the accuracy of metering
