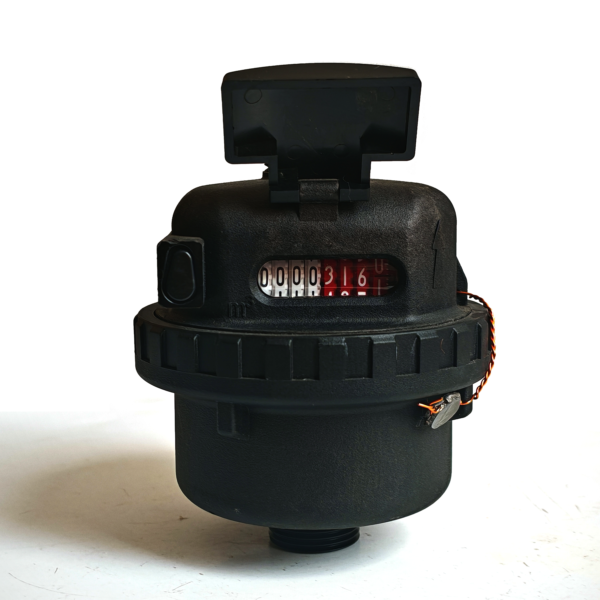

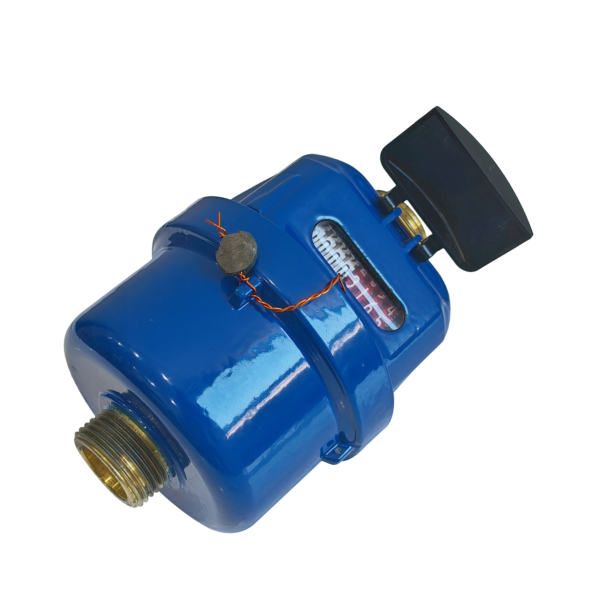

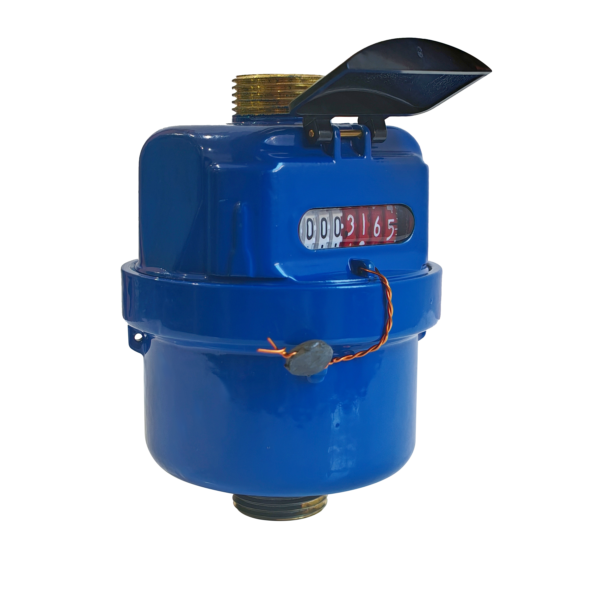

Volumetric Water Meter LXS15B-20B|LXS15P-20P

This series of water meters can be used in a household or a residential unit to measure the amount of potable water flowing through the water pipe.

PRODUCT FEATURES:

•  Design of volumetric meter can ensure the high accuracy when lower flow rate
•  Can be installed in horizontally or vertically
•  Counter used special liquid vacuum seal,which can keep reading longtime
•  Chamber adopts composite durable engineering material, which can ensure meter performance at any flow rate
•  The unique design enables the water meter to be disassembled in use and is equipped with a non-return to prevent theft of water
•  Mechanical transmission, prevent outer magnet
•  Inner strainer will not cause water meter to be damaged because of the accumulation of impurities
•  This series of water meter has been exported to Sri Lanka, Nepal, Cambodia, Thailand, South Africa, and soon

 WORKING CONDITION:

•  Water temperature: T≤50℃
•  Water pressure: ≤1.6Mpa

USER MANUAL

•   Meter should be installed in vertical or horizontal position with the register face upwards
•   Pipeline must be flushed before installation
•  The meter should be constantly full of water during operation
